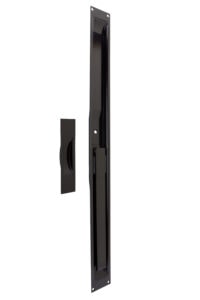

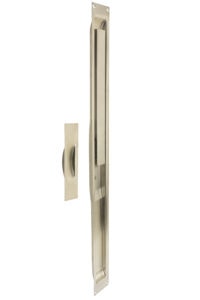

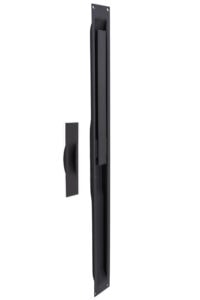

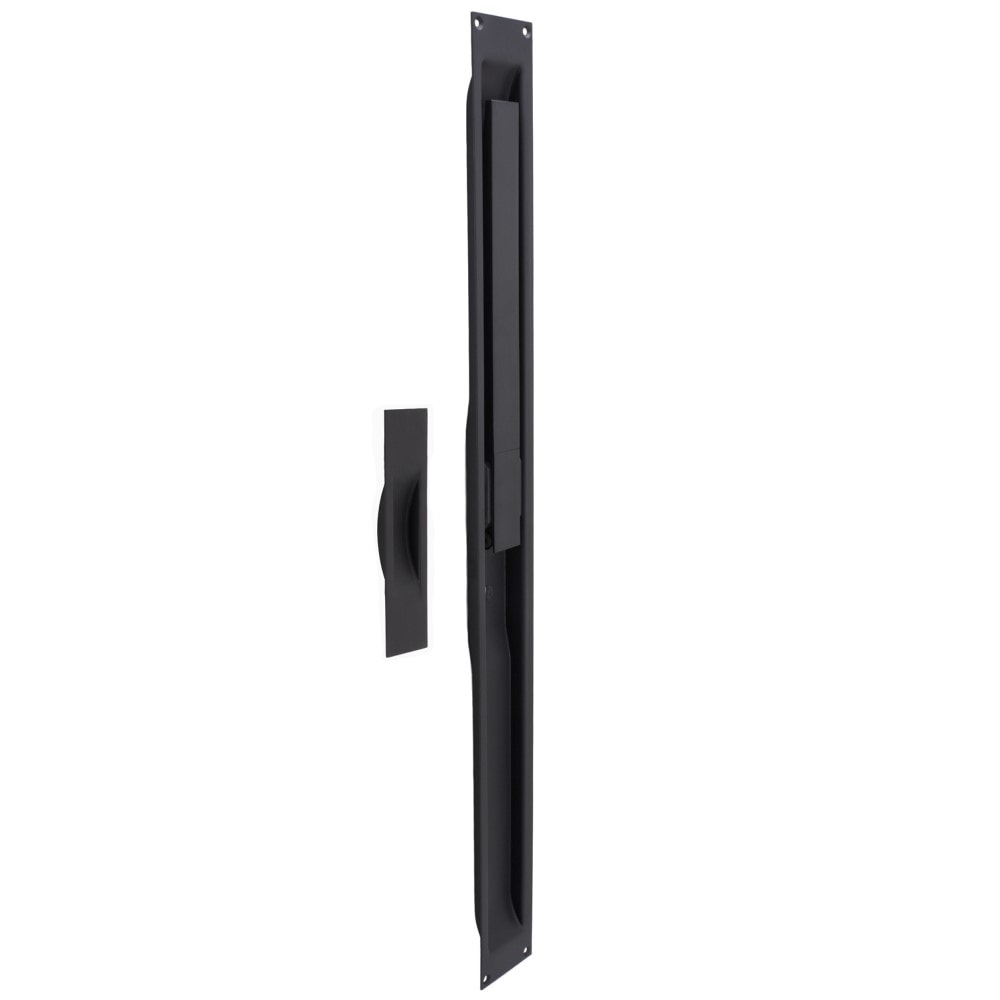

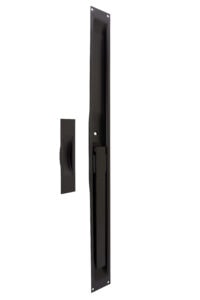

Monarch Folding Lift & Slide Handle

Finishes:

Functions (see ‘Functions’ tab below for more details):

  • Complete Handle Set
  • Inside Handle Only
  • Exterior Flush Pull Only

Description

Part Numbers: (see ‘Functions’ tab)

Our Monarch Folding Lift & Slide Handle is the ideal solution for your Lift & Slide doors.  This flush handle is a perfect alternative to removable handles.

  • Folds away flush with the door to allow for bypass panels and pocket applications
  • Handle is over 9″ long to give you leverage for heavy doors
  • Heavy duty stainless steel material with durable finish; designed to last
  • Standard Lift & Slide screw hole spacing (3.15″)
  • Use with either a Lift & Slide door or window
  • Check out our instructional video (see ‘Videos’ tab) for a complete guide to the safety features of the handle
  • Complete Set:  106-HP-Finish Code (10B, 32, or 32D)
    • Interior handle assembly with exterior flush pull.
  • Inside Handle Only:  106-H-Finish Code (10B, 32, or 32D)
    • Interior handle assembly with no exterior flush pull.  Includes the 265 Backing Plate which installs inside the door behind the mechanism to allow for mounting of the interior handle.
  • Exterior Pull Only:  106-P-Finish Code (10B, 32, 32D)
    • Exterior pull only (no mounting screws).  To be used if replacing an exterior pull from another manufacturer.  Pull would be mounted with the screws from the existing interior handle.

**The Exterior Pull is also available with surface screw mounting for sliding screen doors.**

Complete Set

Interior Handle Only

Exterior Flush Pull Only

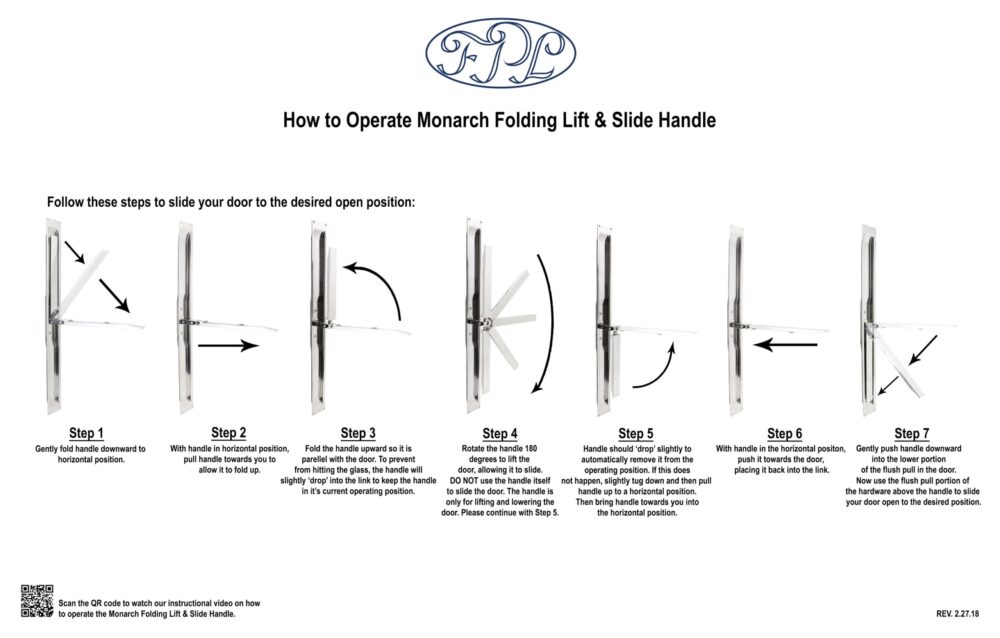

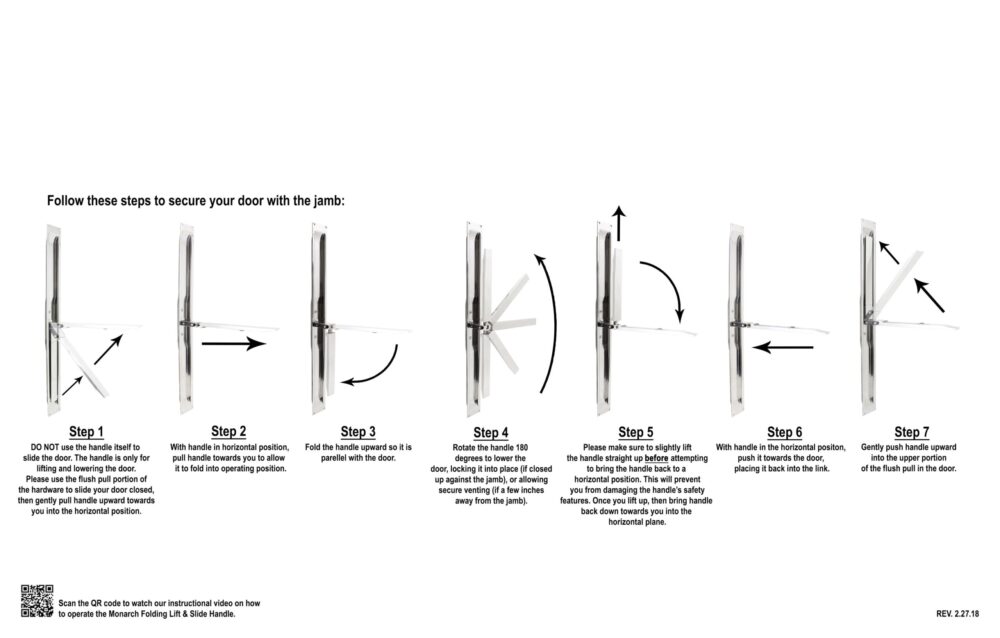

How to Operate Monarch Folding Lift & Slide Handle
