Description
Part Numbers: (see ‘Functions’ tab)
Our Imperial Plate is available to function in a vast variety of options. It is versatile, durable, and beautiful.
- Exterior plate has no visible screws for extra security (plates are through mounted from the interior plates)
- Heavy duty brass base material prevents corrosion and provides a solid product
- Available with American Style Mounted Thumb Turn and Cylinder Housing OR Profile Cylinder Cutouts:
- American Style:
- 3-5/8″ (92 mm) spacing between Lever and Cylinder
- Lever above OR below Cylinder
- Profile Cylinder Cutouts:
- 59 mm, 85 mm, OR 92 mm spacing between Lever and Profile Cylinder Cutout
- Lever ONLY above Profile Cylinder
- American Style:
- Use with any of our lever/knob options (See ‘Compatible Levers / Knobs’ Tab)
- Compatible with a large variety of Mechanisms (See ‘Compatible Mechanisms’ Tab)
- Because this plate is compatible with the #558 Sliding Door Mechanism, you can use this trim plate throughout ALL the doors in a home:
- Sliding Doors
- Multi Point Entry Doors
- Interior Passage and Privacy Doors
- Because this plate is compatible with the #558 Sliding Door Mechanism, you can use this trim plate throughout ALL the doors in a home:
Trim Set with Profile Cylinder Hole Cutouts
Trim Set with Profile Cylinder Hole Cutouts (Order Profile Cylinders Separately):
- Part # IMP-Lever Code-PRO-Cutout Spacing Code-Finish Code
- Lever Codes (Click any code to view product):
- Cutout Spacing Codes (spacing between Lever and Profile Cylinder cutout – in Millimeters) – 59, 85, 92
- Finish Codes (See Finish information at top of product page)
Active Trim Only (92 mm Lever to Cylinder Spacing)
Active Trim Only – 92 mm Lever to Cylinder Spacing (Interior includes mounted Thumb Turn, Exterior includes Cylinder and Cylinder Housing):
- Part # IMP-Lever Code-ACT-Handing Code-Finish Code
- Lever Codes (Click any code to view product):
- Handing Codes (see our Handing Guide on how to determine handing) – Left Hand (LH), or Right Hand (RH)
- Finish Codes (See Finish information at top of product page)
Inactive Trim Only (92 mm Lever to Cylinder Spacing)
Inactive Trim Only – 92 mm Lever to Cylinder Spacing (Interior includes mounted Thumb Turn, Exterior Dummy Plate):
- Part # IMP-Lever Code-INA-Handing Code-Finish Code
- Lever Codes (Click any code to view product):
- Handing Codes (see our Handing Guide on how to determine handing) – Left Hand (LH), or Right Hand (RH)
- Finish Codes (See Finish information at top of product page)
Full Dummy (Through Mounted)
Full Dummy – Interior and Exterior Dummy Plates, through mounted:
- Part # IMP-Lever Code-FDUM-Handing Code-Finish Code
- Lever Codes (Click any code to view product):
- Handing Codes (see our Handing Guide on how to determine handing) – Left Hand (LH), or Right Hand (RH)
- Finish Codes (See Finish information at top of product page)
Half Dummy (Surface Mounted)
Half Dummy – Interior Dummy Plate, surface mounted:
- Part # IMP-Lever Code-HDUM-Handing Code-Finish Code
- Lever Codes (Click any code to view product):
- Handing Codes (see our Handing Guide on how to determine handing) – Left Hand (LH), or Right Hand (RH)
- Finish Codes (See Finish information at top of product page)
See ‘Compatible Mechanisms’ for mechanisms that can be used with the Imperial Plate
Mortise Mechanisms (Multi Point Swing) - See Mechanism Pages for Plate Configuration Details
Mortise Mechanisms (Single Point Swing) - See Mechanism Pages for Plate Configuration Details
Mortise Mechanisms (Single Point Slider) - See Mechanism Pages for Plate Configuration Details
Tubular Latches (Entry Set requires the Deadbolt Kit AND the Passage Latch Kit)
Plate
Imperial Plate w/Bellagio Lever (American Style Cylinder)
Active Set:
Inactive Set:
Passage / Dummy Set:
Imperial Plate w/Imperial Lever (American Style Cylinder)
Active Set:
Inactive Set:
Passage / Dummy Set:
Imperial Plate w/Pickfair Lever (American Style Cylinder)
Active Set:
Inactive Set:
Passage / Dummy Set:
Imperial Plate w/Luxor Lever (American Style Cylinder)
Active Set:
Inactive Set:
Passage / Dummy Set:
Imperial Plate w/Normandy Lever (American Style Cylinder)
Active Set:
Inactive Set:
Passage / Dummy Set:
Imperial Plate w/Piedmont Lever (American Style Cylinder)
Active Set:
Inactive Set:
Passage / Dummy Set:
Imperial Plate w/Riviera Lever (American Style Cylinder)
Active Set:
Inactive Set:
Passage / Dummy Set:
Imperial Plate w/Tuscany Lever (American Style Cylinder)
Active Set:
Inactive Set:
Passage / Dummy Set:
Imperial Plate - Trim Set Components (American Style Cylinder)

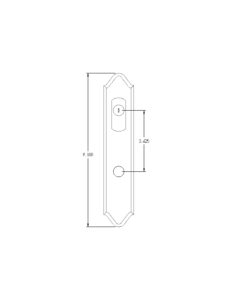

Plate Drawings
Imperial Plate Multipoint Functions - American Style Cylinder (Lever Below Cylinder)
Imperial Plate Multipoint Functions - European Style Cylinder (Lever Above Cylinder)
