Finishes:
Features:
- Interior thumb turn with exterior release for emergency access (2 full rotations to lock in place)
- Lever above thumb turn / emergency access
- Multiple Backset configurations (see ‘Dimension Drawings’ Tab):
- Minimum Backset – 1-9/16″ (40 mm)
- Maximum Backset – 3-5/32″ (80 mm)
- Pair with the following mechanisms throughout the home:
Description
Part Numbers: (see ‘Parts List’ tab)

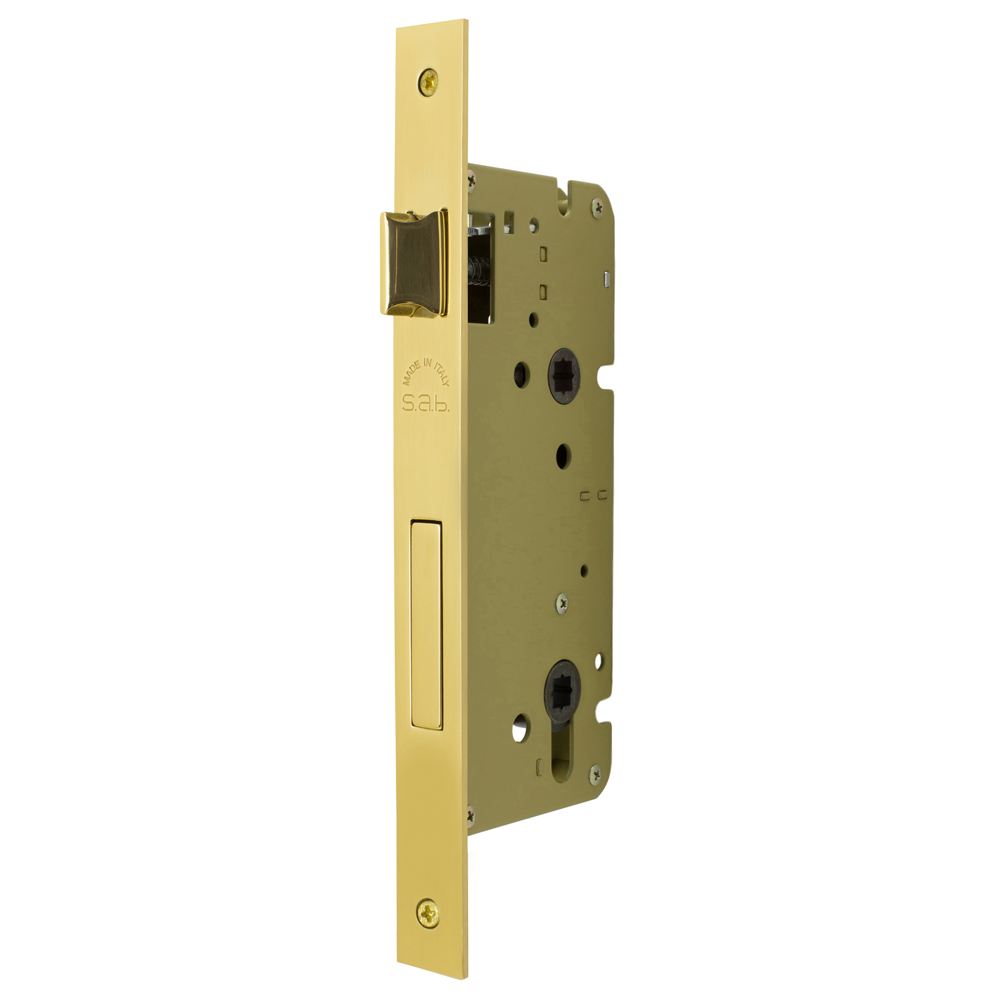

The 2216 Privacy Mortise Mechanism is made in Italy and is of the highest quality. It is available in multiple Backset configurations, including some narrow options.
- Interior thumb turn with exterior release for emergency access (2 full rotations to lock in place)
- Lever above thumb turn / emergency access
- Multiple Backset configurations (see ‘Dimension Drawings’ Tab):
- Minimum Backset – 1-9/16″ (40 mm)
- Maximum Backset – 3-5/32″ (80 mm)
- Pair with the following mechanisms throughout the home:
Part Numbers (Specify needed parts when ordering):
Mechanism :
- Part # 2216-Backset (40, 45, 50, 60, 70, or 80 mm)-Finish Code (US 3, 5, 10B, 15, 15A, 26, 26D, PVD)
Strike:
- Part # 357-Finish Code (US 3, 5, 10B, 15, 15A, 26, 26D, PVD)
Dustbox:
- Standard Plastic Dustbox (Latch and Deadbolt):
- Part # C371
- Optional Brass Dustbox (Latch only):
- Part # 370-DB
Plates / Rosettes
Levers / Knobs
Mechanism
Strike
Mechanism Drawings
Strike Drawings
Reverse Latch Handing Instructions
