Finishes:
Description

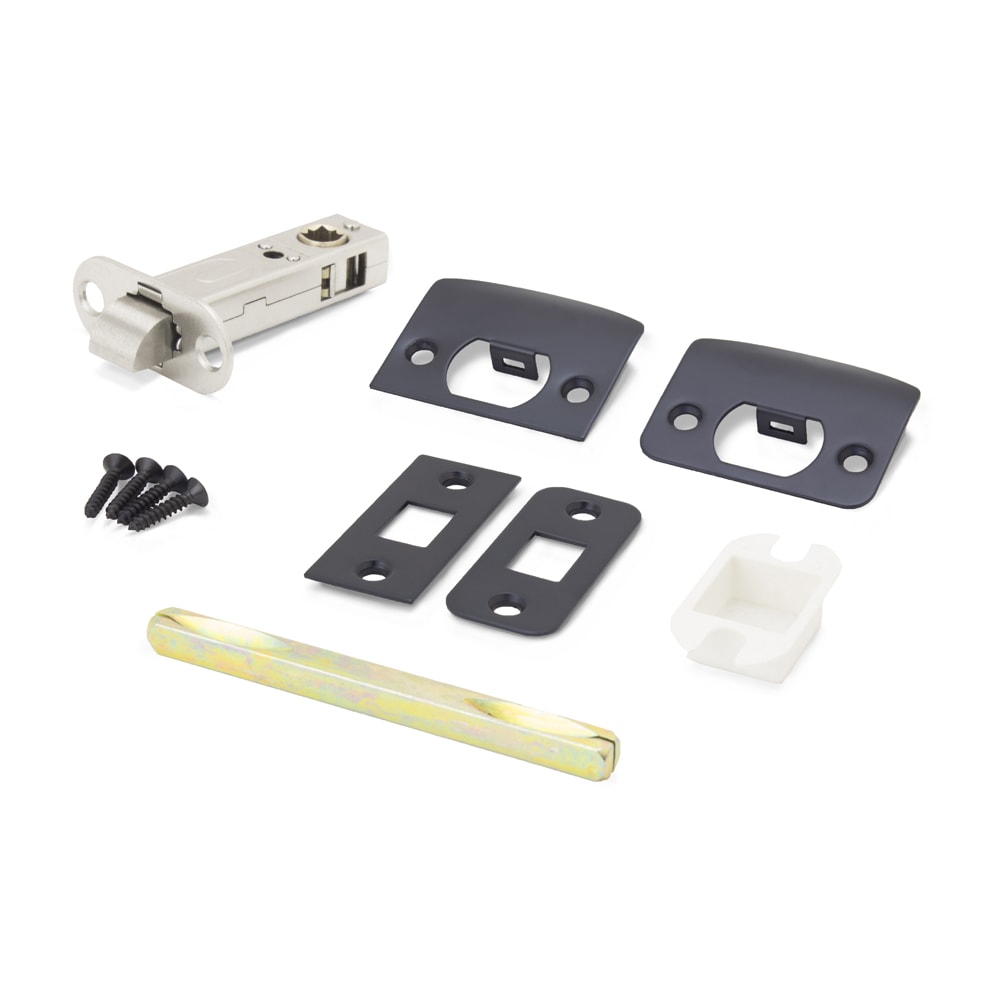

Our Tubular Passage Latch Kit provides everything you need for your tubular latch. It includes the following components:
- Latch
- Latch Front (square & rounded corners)
- Full Lip Strike (square & rounded corners)
- Mounting Screws
- Dust Box
- 105 mm Passage Spindle
This passage latch is compatible with multiple plates/rosettes (see ‘Compatible Plates/Rosettes’ tab), and when paired with our Tubular Deadbolt Kit, also operates as part of an entry set. Additional features below:
- Strong spring to ensure lever return
- Used along with our Lever Spring Assist, which has 2 additional strong springs, ensuring lever return and preventing lever sag for years to come

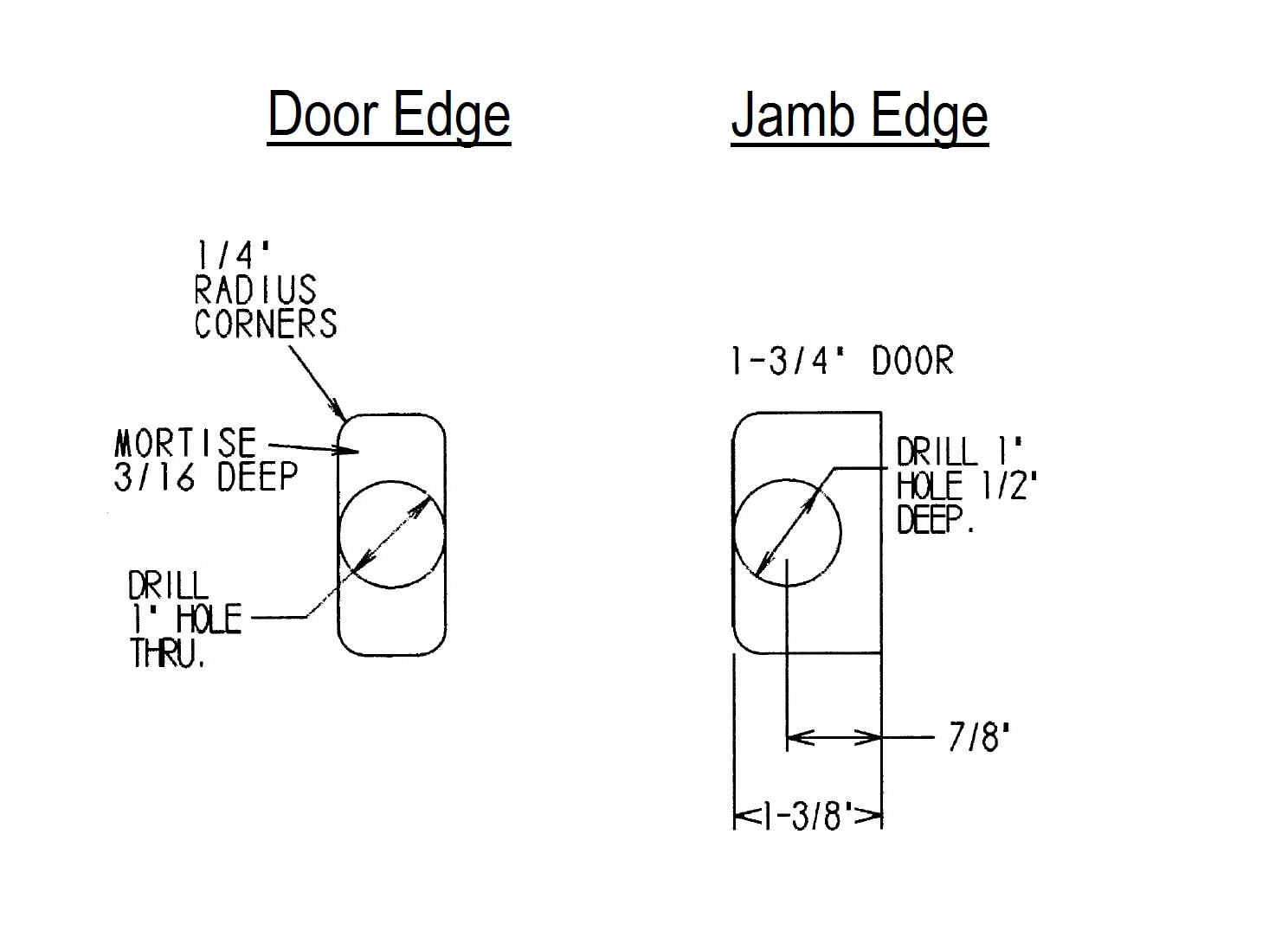

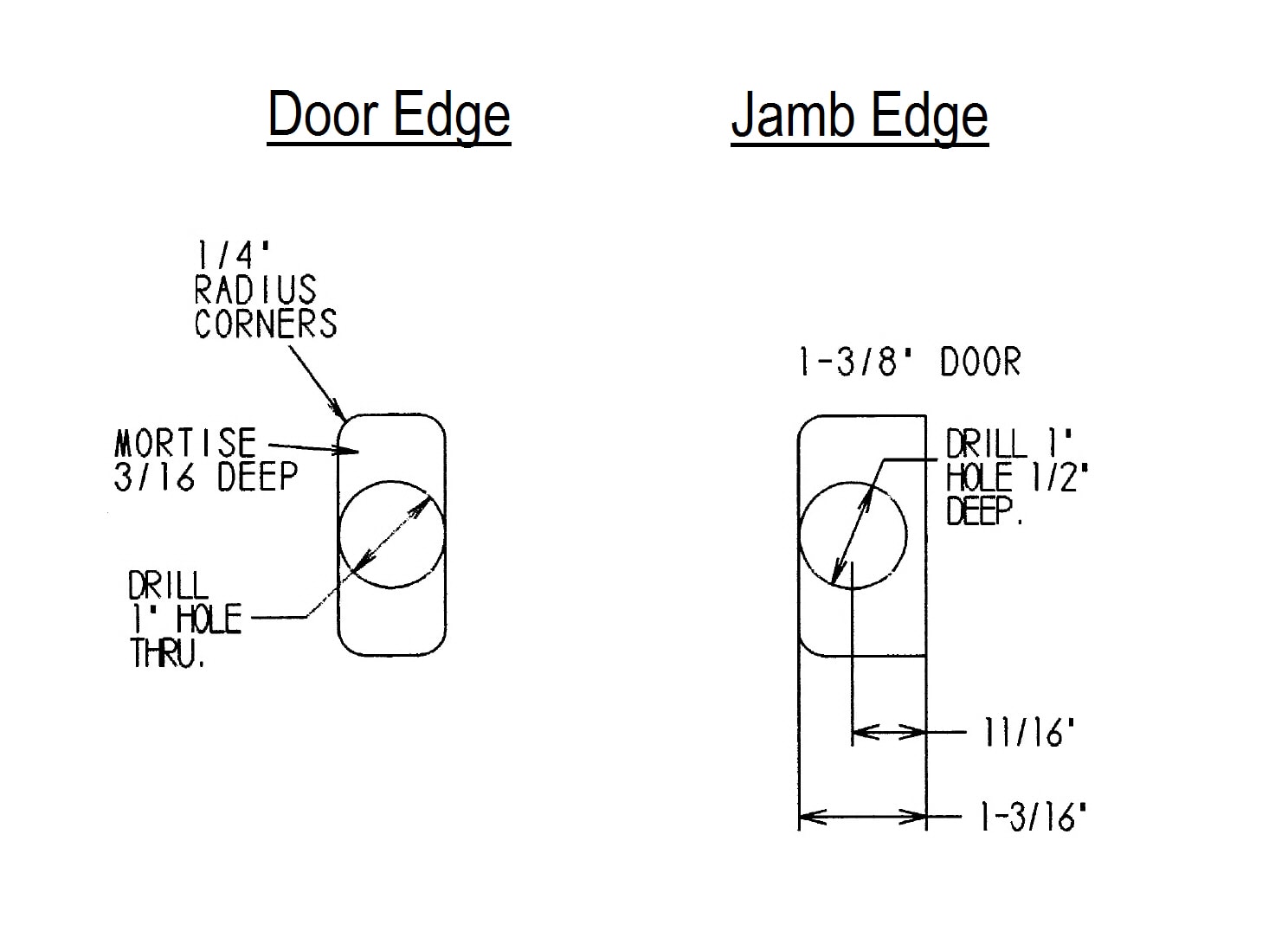

- Use on 1-3/8″ or 1-3/4″ thick doors (see ‘Milling Details’ tab)
- Available in 2 different backsets (see ‘Part Numbers’ tab):
- 2-3/8″
- 2-3/4″
2-3/8″ Backset
- Part #Â Â 672A-238-CK-Finish Code
- Finish Codes (See Finish information at top of product page)
2-3/4″ Backset
- Part #Â Â 672A-234-CK-Finish Code
- Finish Codes (See Finish information at top of product page)
