Finishes:
Functions (see ‘Functions’ tab below for more details):
- Handle Only

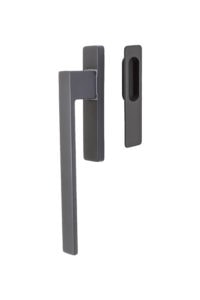

- Handle with Flush Pull
- Handle Only (with Cylinder Cutout)
- Handle (with Cylinder Cutout) with Flush Pull
- Handle Pair (with Cylinder Cutout)
Description
Part Numbers: (see ‘Functions’ tab)

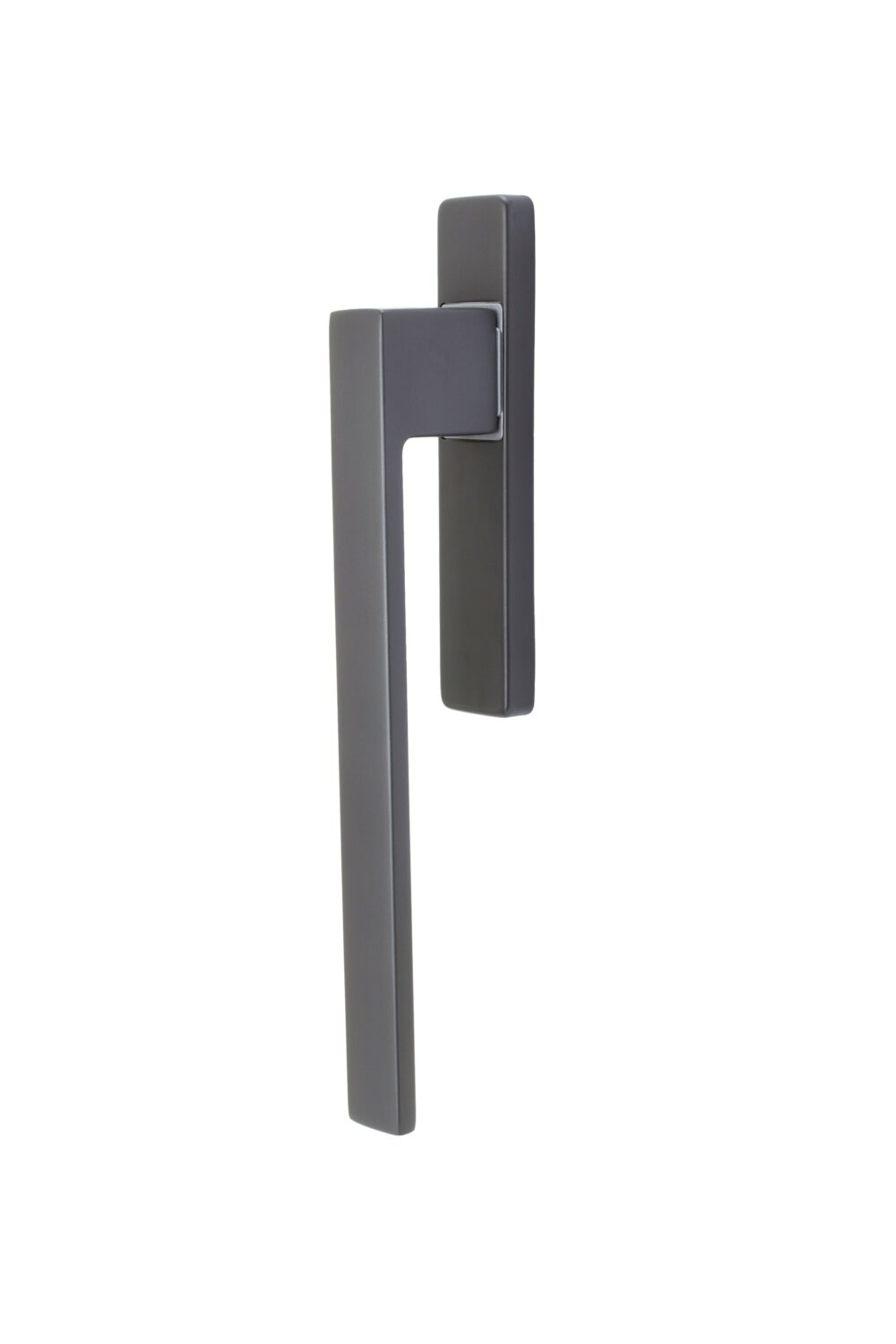

Our Amsterdam Lift & Slide Handle is a sleek, modern option for your Lift & Slide doors. With a solid brass handle, this product provides the most positive statement.
- Handle is over 9″ long to provide leverage for heavy doors (compatible with Lift & Slide doors or windows)
- Standard Lift & Slide screw hole spacing (3.15″)
- Use with standard 2-1/4″ thick panels (for thicker panels please contact us with your request)
- Heavy duty brass material with durable finish; designed to last
- Spindle and mounting screws included

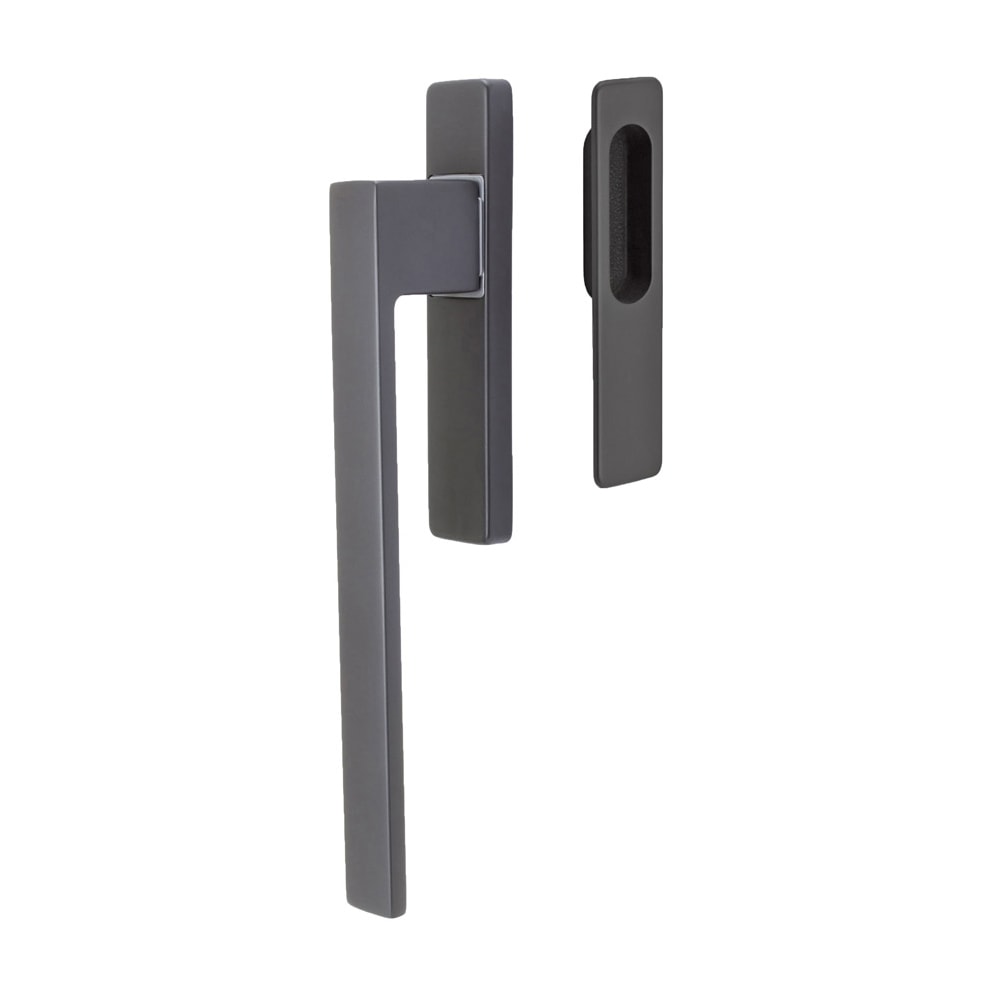

- Complete Set:Â 124 MD Q01-Finish Code (US 10B or US 15)

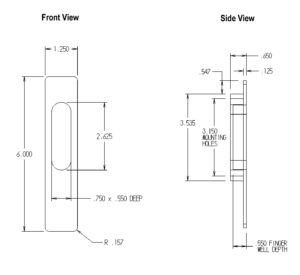

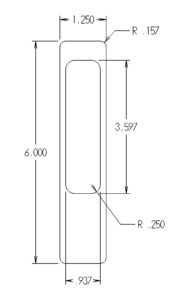

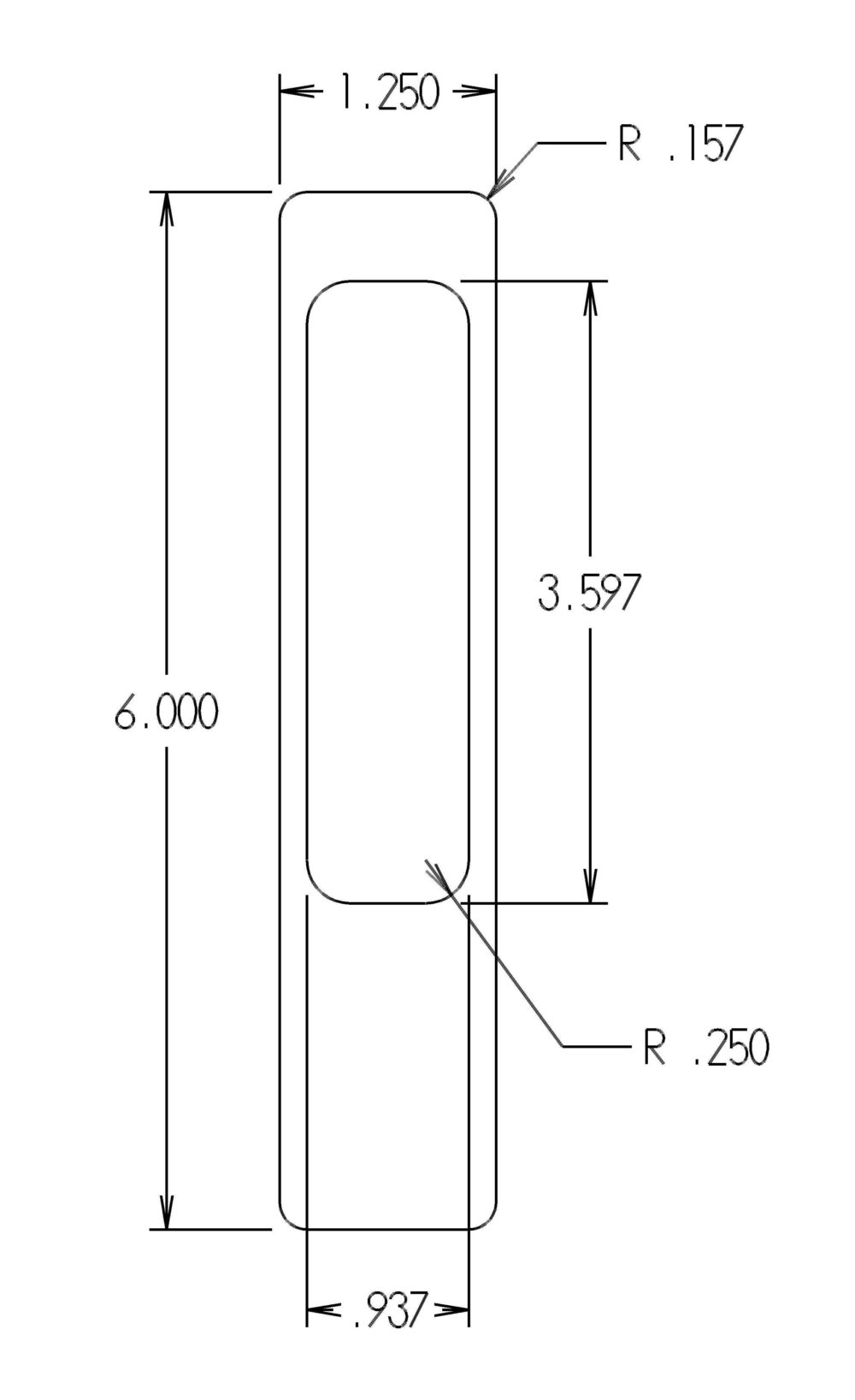

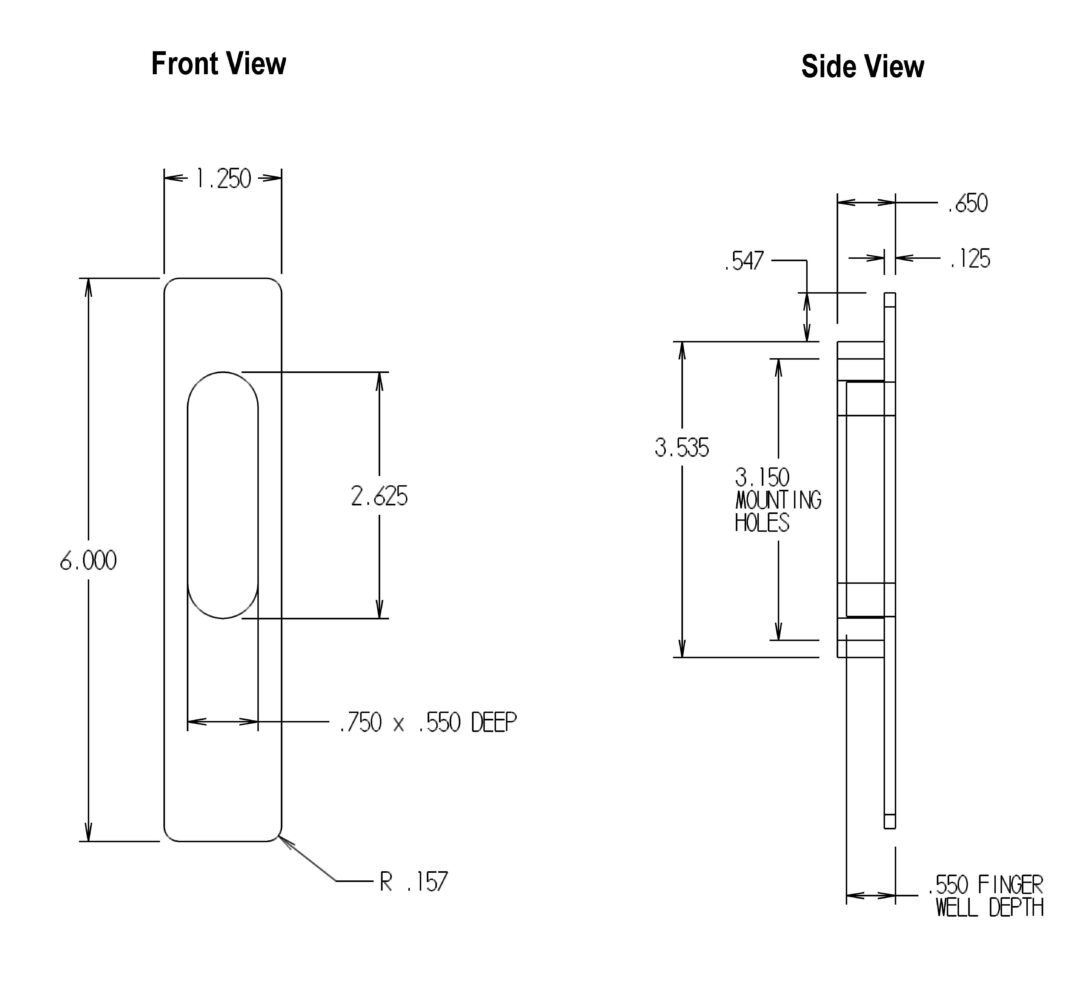

- Interior handle assembly with no cylinder hole. Includes outside flush pull.
- Complete Keyed Set: 124 MD Q10-Finish Code (US 10B or US 15)
- Interior handle assembly with cylinder hole. Includes outside flush pull.

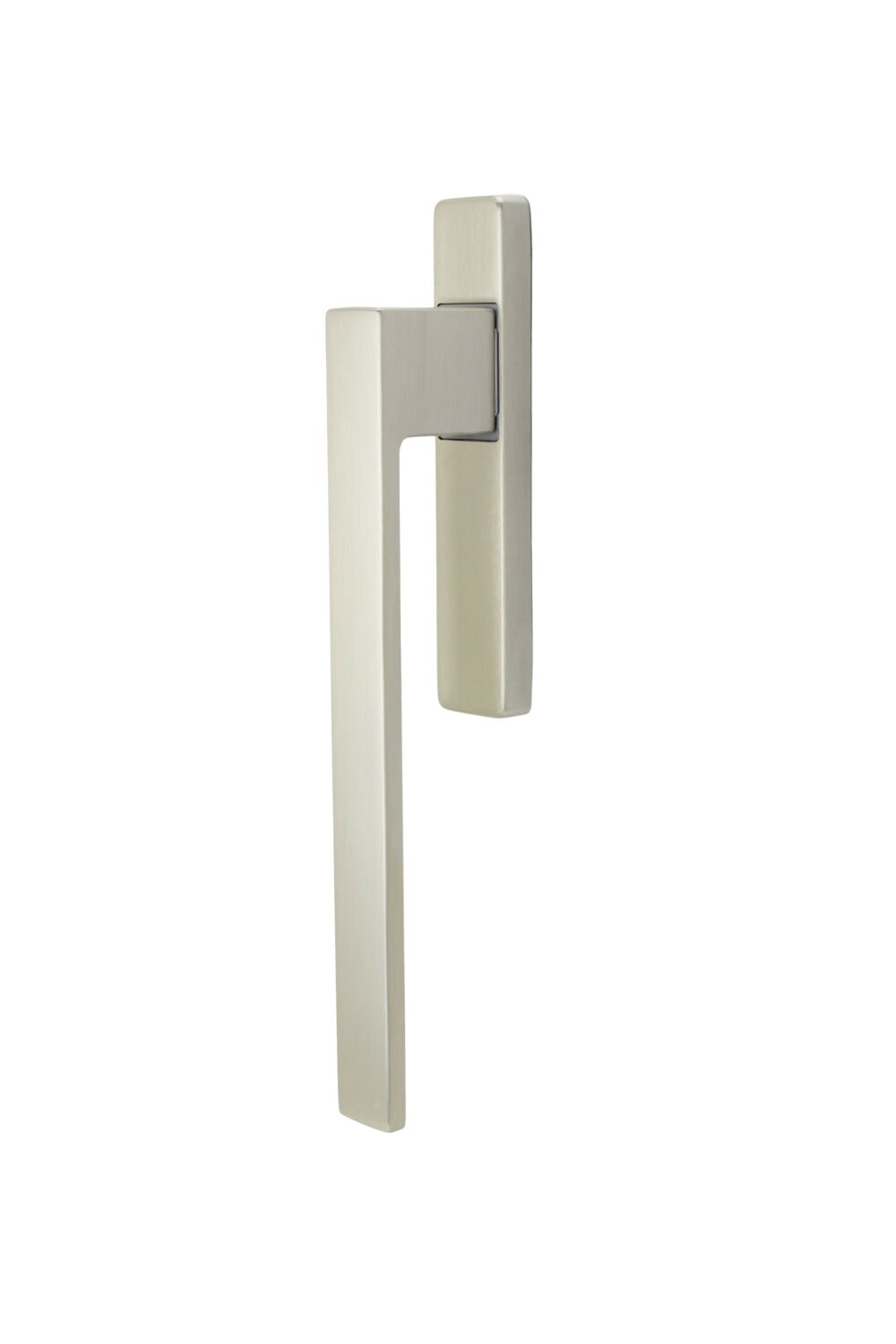

- Interior Handle Only: 124 MD Q11-Finish Code (US 10B or US 15)

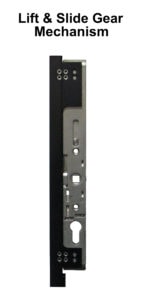

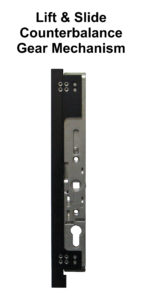

- Interior handle assembly with no cylinder hole. Does not include exterior flush pull. Includes the 265 Backing Plate which installs inside the door behind the mechanism to allow for mounting of the interior handle.

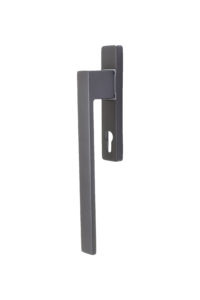

- Interior Keyed Handle Only: 124 MD Q00-Finish Code (US 10B or US 15)
- Interior handle assembly with cylinder hole. Does not include exterior flush pull. Includes the 265 Backing Plate.
- Paired Handle Only: 124 LD Q00-Finish Code (US 10B or US 15)
- Interior and exterior handle assembly with cylinder hole. Does not include exterior flush pull.
Complete Set
Interior Handle Only
Paired Handle Only
