D70 2-Point Sliding Mortise Mechanism (Door or Window)

FPL Door Locks & Hardware Inc > Products > Sliding Door Hardware > Lock Mechanisms > D70 2-Point Sliding Mortise Mechanism (Door or Window)

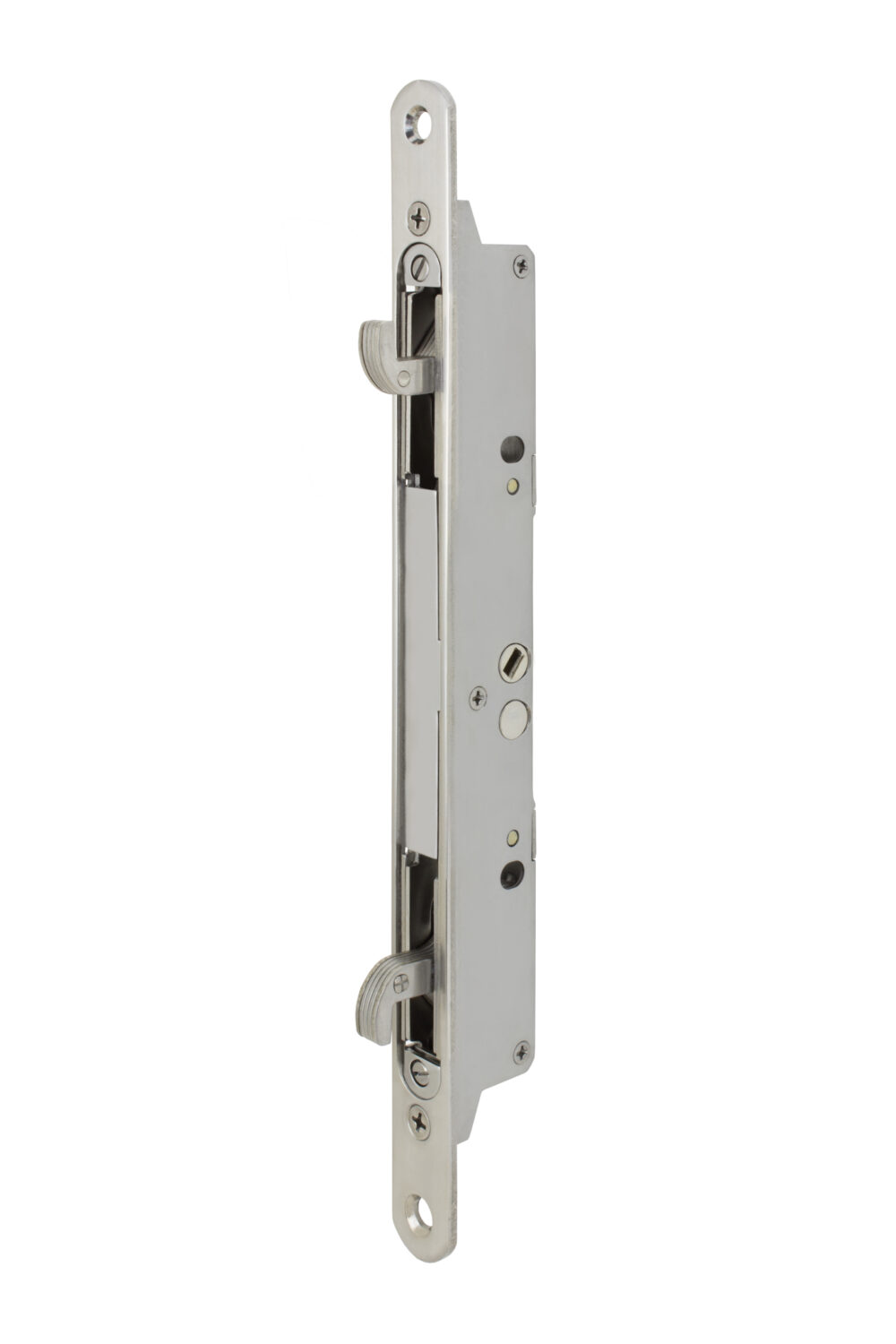

D70 2-Point Sliding Mortise Mechanism - Engaged

Features:

  • Easy installation
  • Stainless Steel material (including strike)
  • Will withstand a forced entry load of 1,000 lbs
  • Operates with a simple American Key Cylinder tail piece
  • Opposing hook style latches engage with strike for secure multi point locking
  • Latch adjusting screw and adjustable strikes for proper alignment
  • Strikes options allow for 2 different Backsets (see ‘Part Numbers’ tab for details):
    • 7/8″
    • 1-3/8″
Categories: , , , , , , , ,

Description

Description

Part Numbers:  (see ‘Part Numbers’ tab)

FPL’s D70 2-Point Sliding Mortise Mechanism is a durable stainless steel multi point lock that is compatible with many sliding doors on the market.

  • Easy installation
  • Stainless Steel material (including strike)
  • Will withstand a forced entry load of 1,000 lbs
  • Operates with a simple American Key Cylinder tail piece
  • Opposing hook style latches engage with strike for secure multi point locking
  • Latch adjusting screw and adjustable strikes for proper alignment
  • Strikes options allow for 2 different Backsets (see ‘Part Numbers’ tab for details):
    • 7/8″
    • 1-3/8″

Part Numbers

Mechanism Only (no Handles or Strike):

  • Part #   D70

Mechanism with Strike (no Handles): 7/8″ Backset

  • Part #   D70-D70-SK

Mechanism with Strike (no Handles): 1-3/8″ Backset

  • Part #   D70-D70-SS-SK

Photo Gallery

Mechanism

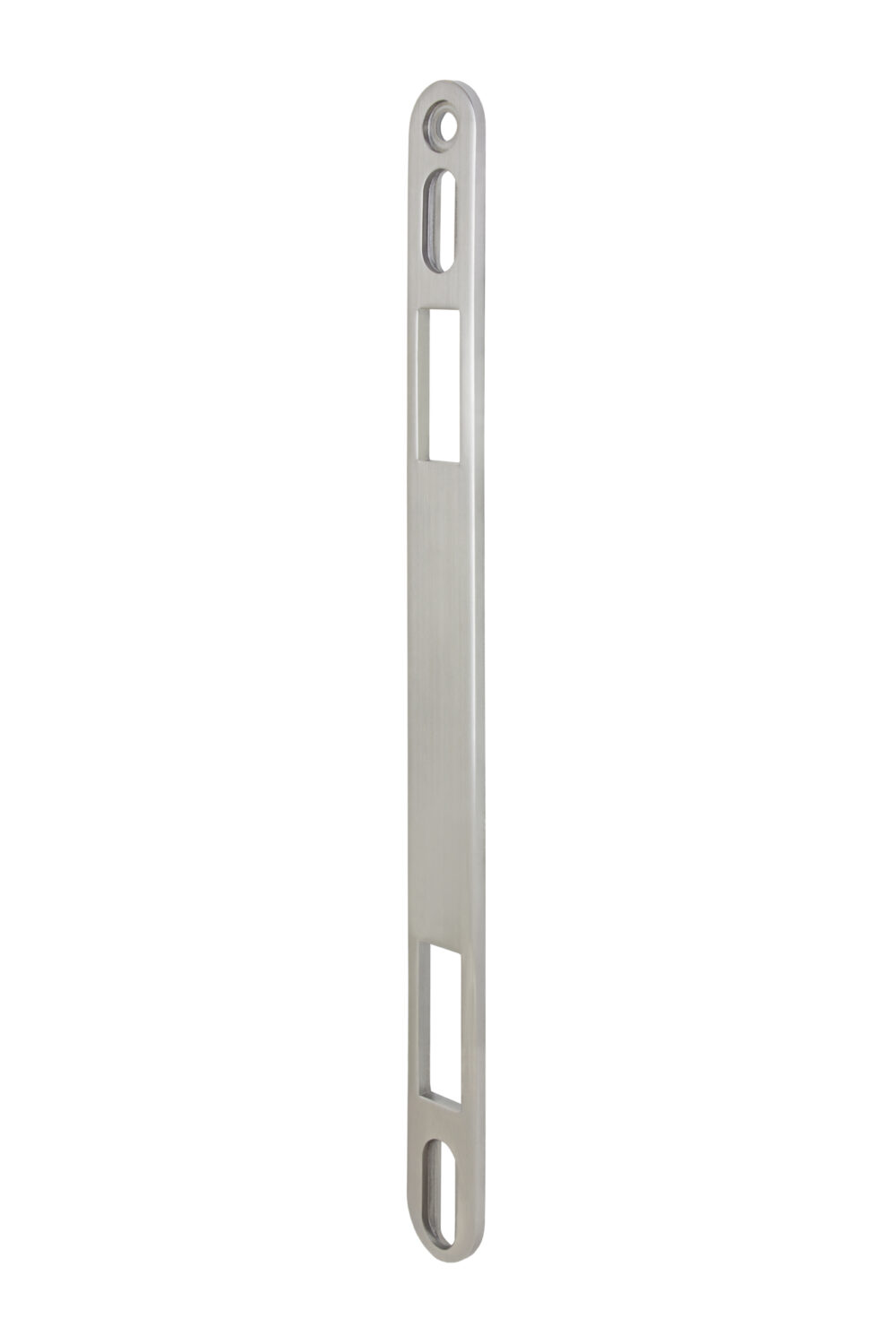

Strikes

Dimension Drawings

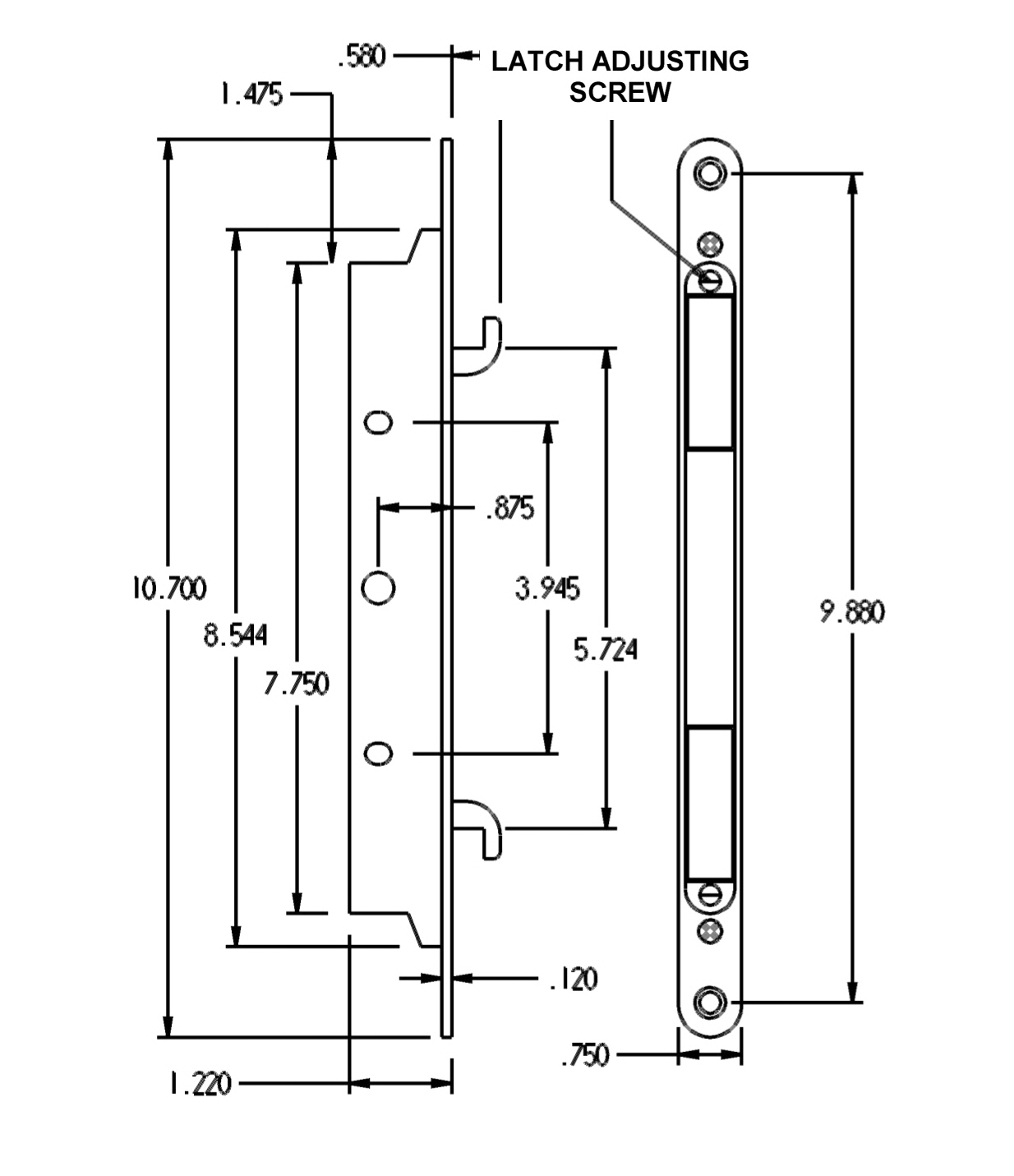

Mechanism Drawing

Strike Drawings
