Finishes:

Functions (see ‘Functions’ tab below for more details):

  • Handle Only
  • Handle with Flush Pull
  • Handle Only (with Cylinder Cutout)
  • Handle (with Cylinder Cutout) with Flush Pull
  • Handle Pair (with Cylinder Cutout)

Description

Part Numbers: (see ‘Functions’ tab)

Our Barcelona Short Lift & Slide Handle is a simple design for your Lift & Slide doors. With a solid brass and curved handle, durability and comfort are unmatched. All while having the convenience of a shorter handle.

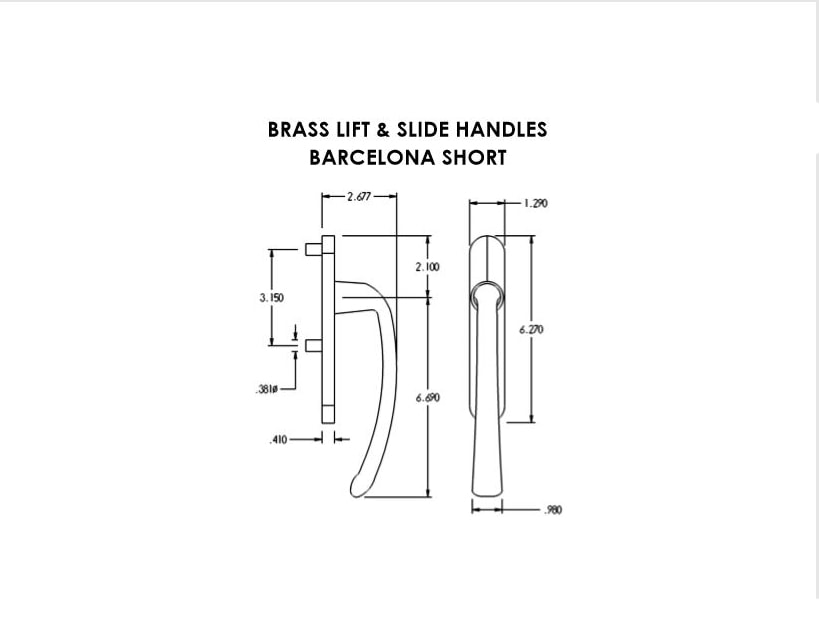

  • Handle is over 6″ long; ideal for your Lift & Slide window (compatible with Lift & Slide doors and windows)
  • Standard Lift & Slide screw hole spacing (3.15″)
  • Use with standard 2-1/4″ thick panels (for thicker panels please contact us with your request)
  • Heavy duty brass material with durable finish; designed to last
  • Spindle and mounting screws included

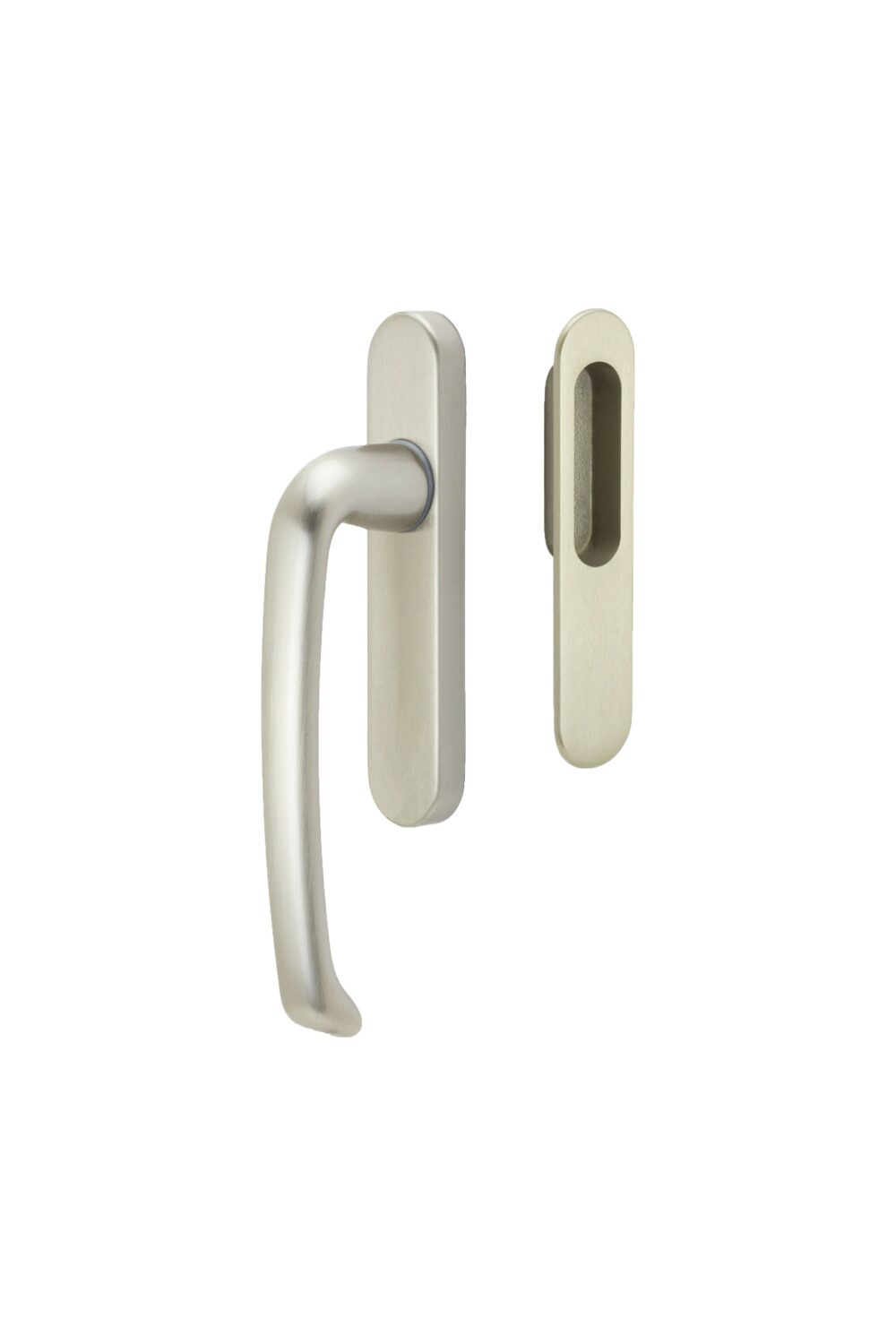

  • Complete Set:  107 MD 001-Finish Code (US 3, US 5, US 10B, US 15, US 15A, US 26, US 26D)
    • Interior handle assembly with no cylinder hole. Includes outside flush pull.

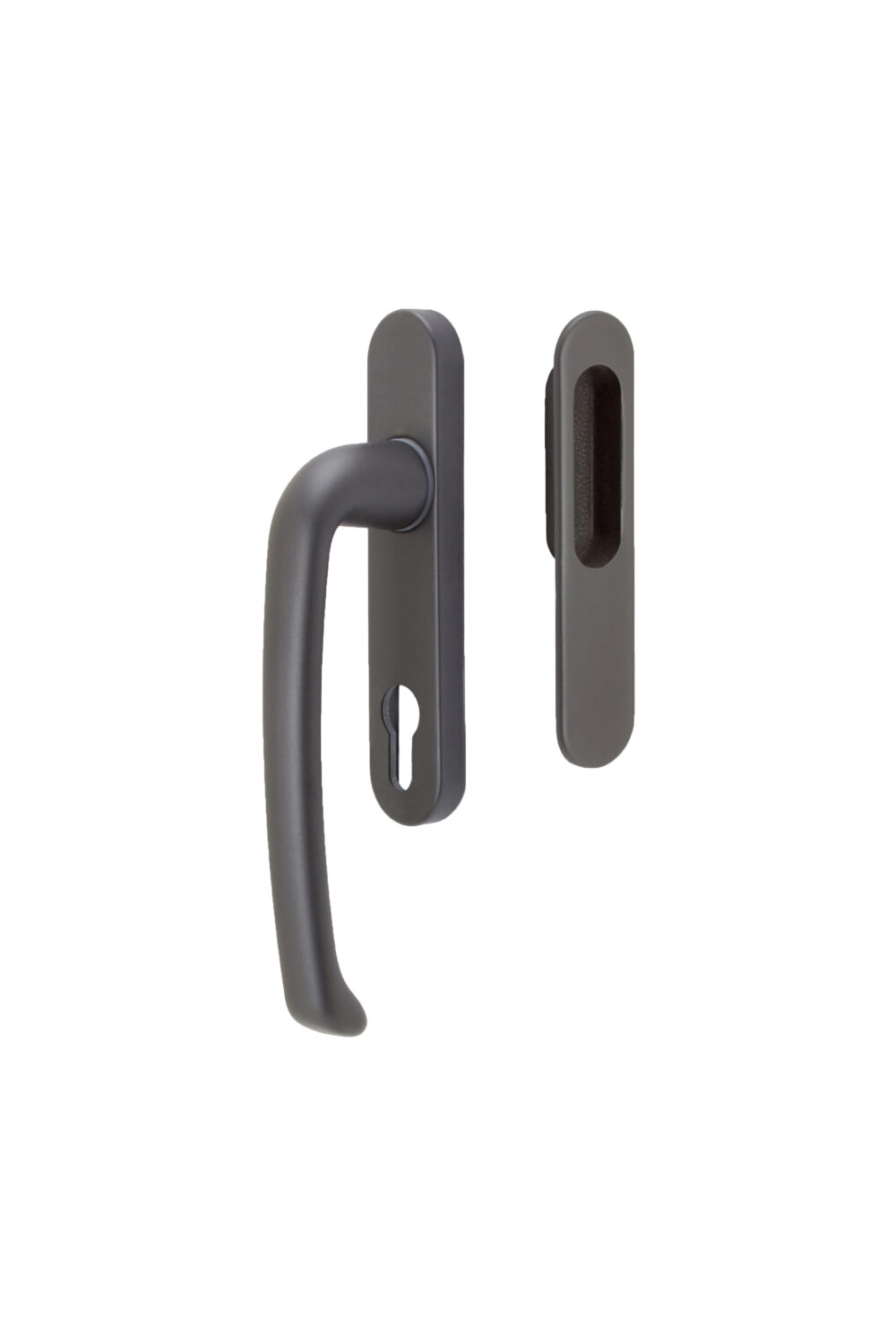

  • Complete Keyed Set: 107 MD 010-Finish Code (US 3, US 5, US 10B, US 15, US 15A, US 26, US 26D)
    • Interior handle assembly with cylinder hole. Includes outside flush pull.
  • Interior Handle Only: 107 MD 011-Finish Code (US 3, US 5, US 10B, US 15, US 15A, US 26, US 26D)
    • Interior handle assembly with no cylinder hole. Does not include exterior flush pull.  Includes the 265 Backing Plate which installs inside the door behind the mechanism to allow for mounting of the interior handle.

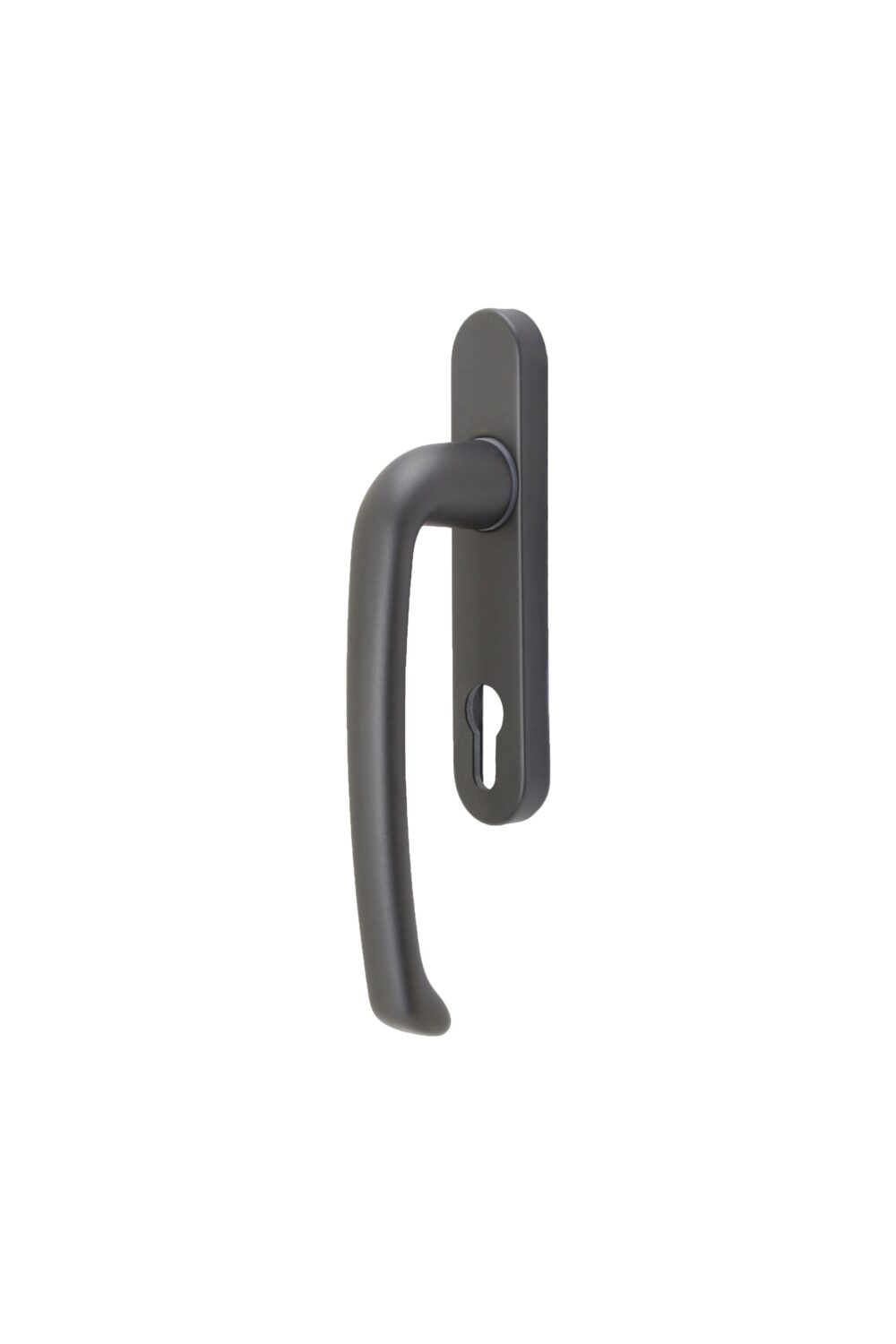

  • Interior Keyed Handle Only: 107 MD 000-Finish Code (US 3, US 5, US 10B, US 15, US 15A, US 26, US 26D)
    • Interior handle assembly with cylinder hole. Does not include exterior flush pull. Includes the 265 Backing Plate.
  • Paired Handle Only: 107 LD 000-Finish Code (US 3, US 5, US 10B, US 15, US 15A, US 26, US 26D)
    • Interior and exterior handle assembly with cylinder hole. Does not include exterior flush pull.

Complete Set

Interior Handle Only

Paired Handle Only
