#6800 Casement Window Multipoint Mechanism

Features:

  • Multipoint Casement Window Mechanism with Shoot Bolts and optional Roller Cam Extensions (see Description and Technical Specs below)
  • Stainless Steel (Grade 316)
  • Available in a 25 mm or 40 mm Backset
  • Versatile configurations (see ‘Technical Specs’ tab for more details):
    • Shoot Bolts
    • Roller Cams
    • Shoot Bolts & Roller Cams

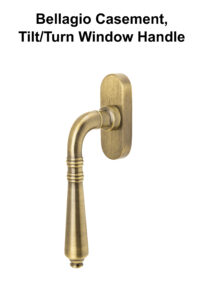

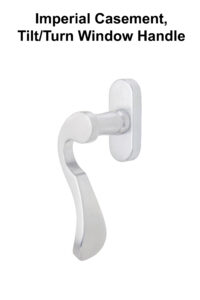

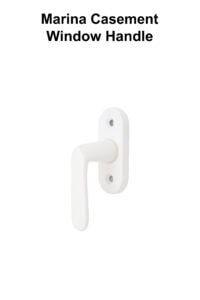

  • See the ‘Compatible Window Handles’ Tab below for available handles

Description

Part Numbers:  See ‘Parts List’ tab for a part number breakdown.

Our 6800 Casement Window Multipoint Mechanism is versatile and durable.  It is the perfect compliment for high end custom windows.  Below are some of the highlights of the mechanism:

  • Stainless Steel material (Grade 316)
  • Backsets:
    • 25 mm
    • 40 mm
  • Multiple configuration options (See ‘Technical Specs’ tab for detailed drawings):
    • Shoot bolts – Top and Bottom (2 locking points)
      • Height:
        • Minimum of 21.625″
        • Stock height (no extensions) of 62″
        • For taller windows, add extensions (each extension is 19.687″ tall)
    • Roller Cams – Extensions with Roller Cams (2 locking points)
      • Height:
        • Minimum of 22.625″
        • Stock height of 89.625″ (only 2 roller cam extensions)
        • For taller windows, add extensions (each extension is 19.687″ tall)
    • Shoot bolts & Roller Cams – Top and Bottom shoot bolts, and extensions with Roller Cams (4 locking points)
      • Height:
        • Minimum of 40.625″
        • Stock height of 101.375″ (only 2 roller cam extensions)
        • For taller windows, add extensions (each extension is 19.687″ tall)

Part Numbers (Specify needed parts when ordering):

Mechanism (Stainless Steel only):

  • 25 mm Backset:
    • Part #   F682512801
  • 40 mm Backset:
    • Part #   F684012801

Shoot Bolts:

  • Top Shoot Bolt (Reverse Action)
    • Part #   IM2-150
  • Bottom Shoot Bolt (Forward Action)
    • Part #   TM2-150

Extensions:

  • Standard Extension (no additional Locking Point)
    • Part #   500EXTI
  • Roller Cam Extension (1 additional Locking Point per extension)
    • Part #   500EXTIRC

Shoot Bolt Strikes:

  • Standard Rectangular Strike (Adjustable)
    • Part #   F10PZREL
  • Optional Thimble Strike – Screwless Mounting (Adjustable)
    • Part #   F10PZBE
  • Optional Double Strike (Adjustable)
    • Part #   F10PZRB1

Roller Cam Strikes:

  • Roller Cam Strike – 1 Slot
    • Part #   F101ZE70
  • Roller Cam Strike – 2 Slots
    • Part #   F101ZE80

Screws:

  • Part #   7125

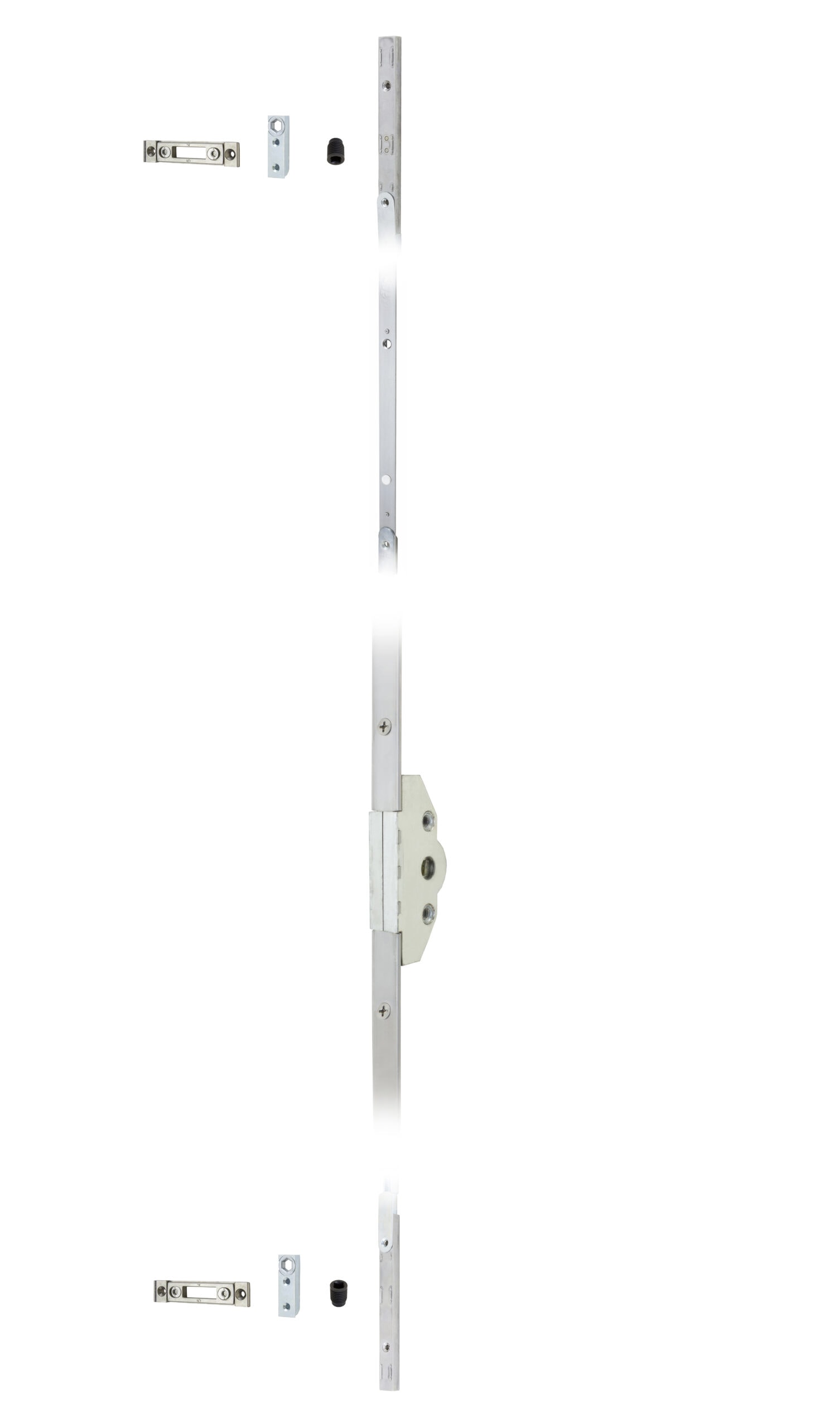

#6800 Casement Window Multipoint Mechanism

#6800 Casement Window Multipoint Mechanism (Labeled)

Main Mechanism

Shoot Bolts

Extensions

Strikes

Mechanism Drawings (with Shoot Bolts)

Mechanism Drawings (with Roller Cams)

Mechanism Drawings (with Shoot Bolts & Roller Cams)

Extension Drawings

Strike Drawings

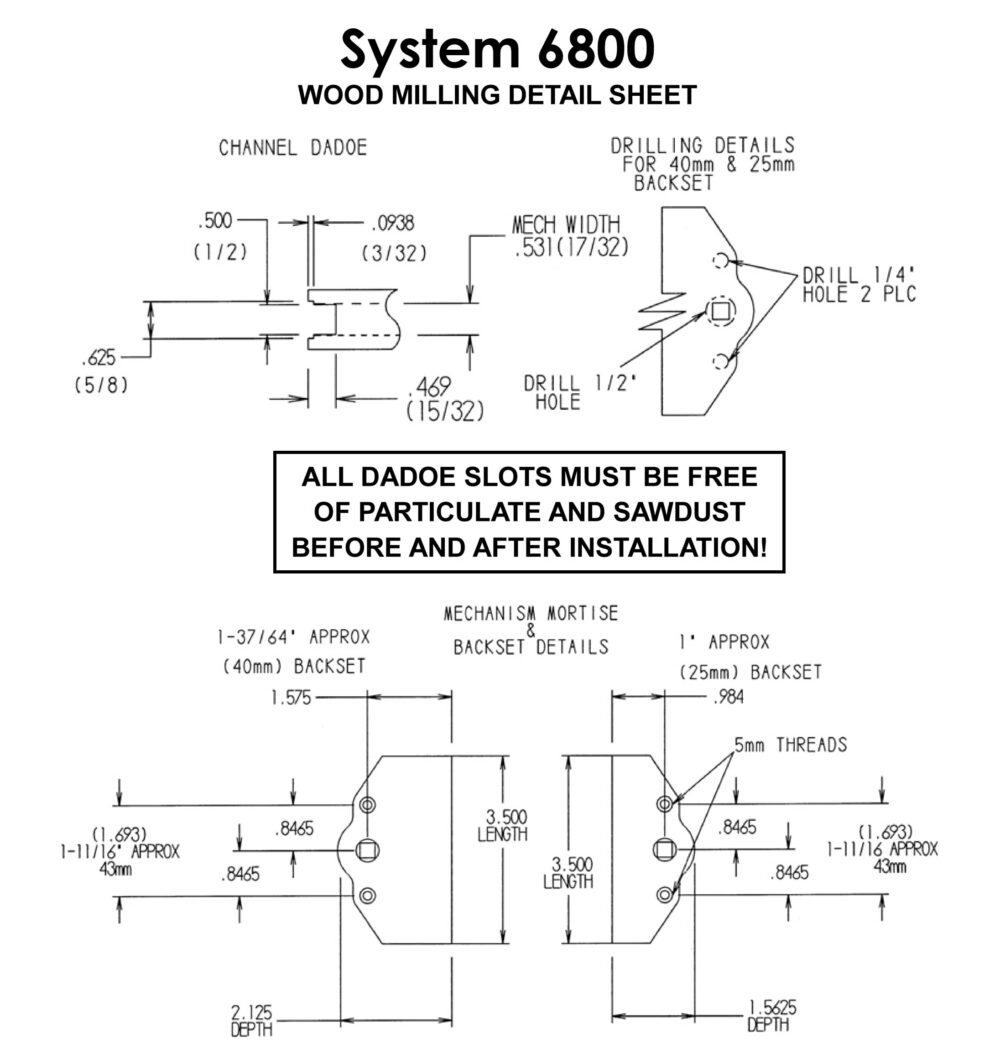

Milling, Installation, Adjust & Connection Procedure
