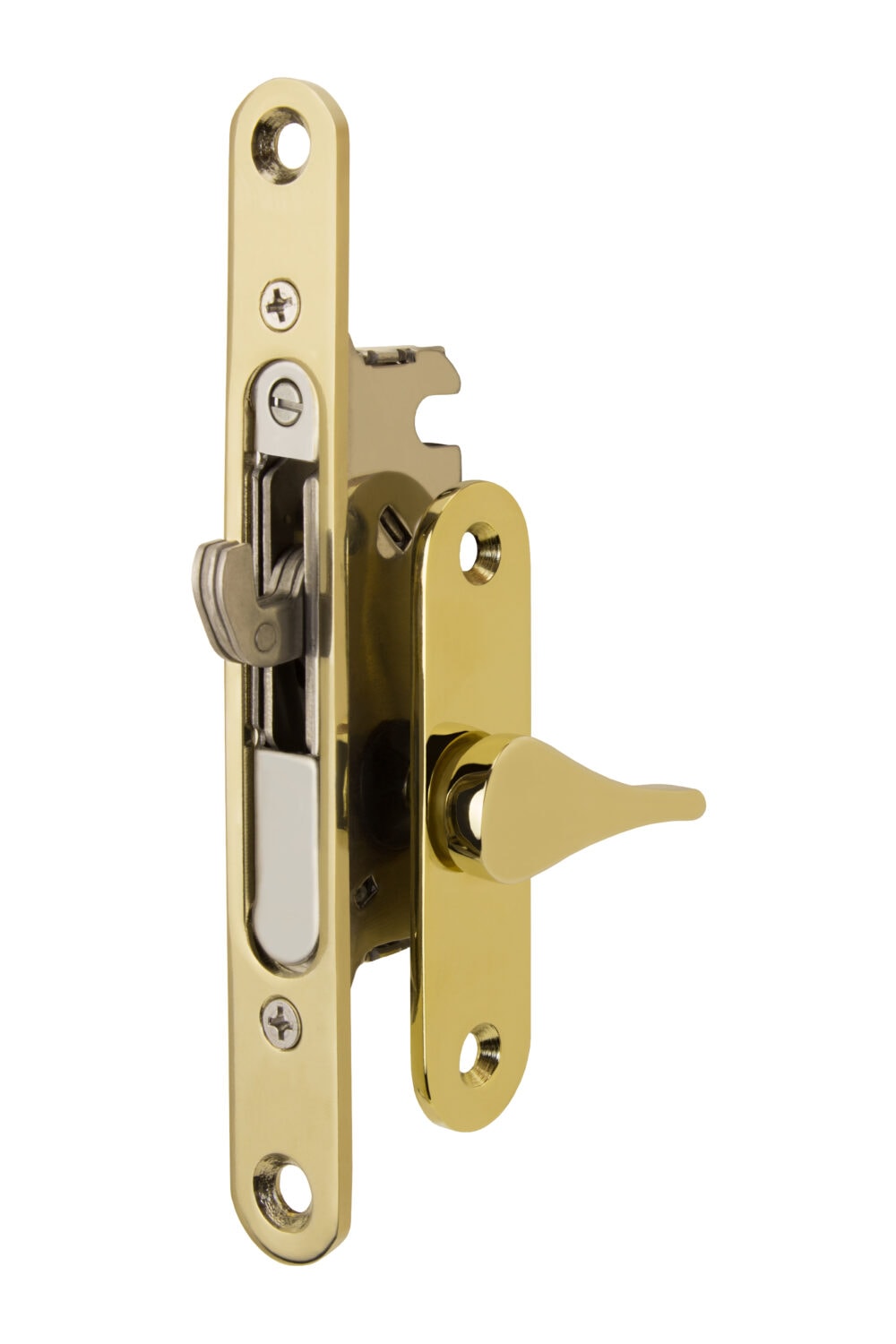

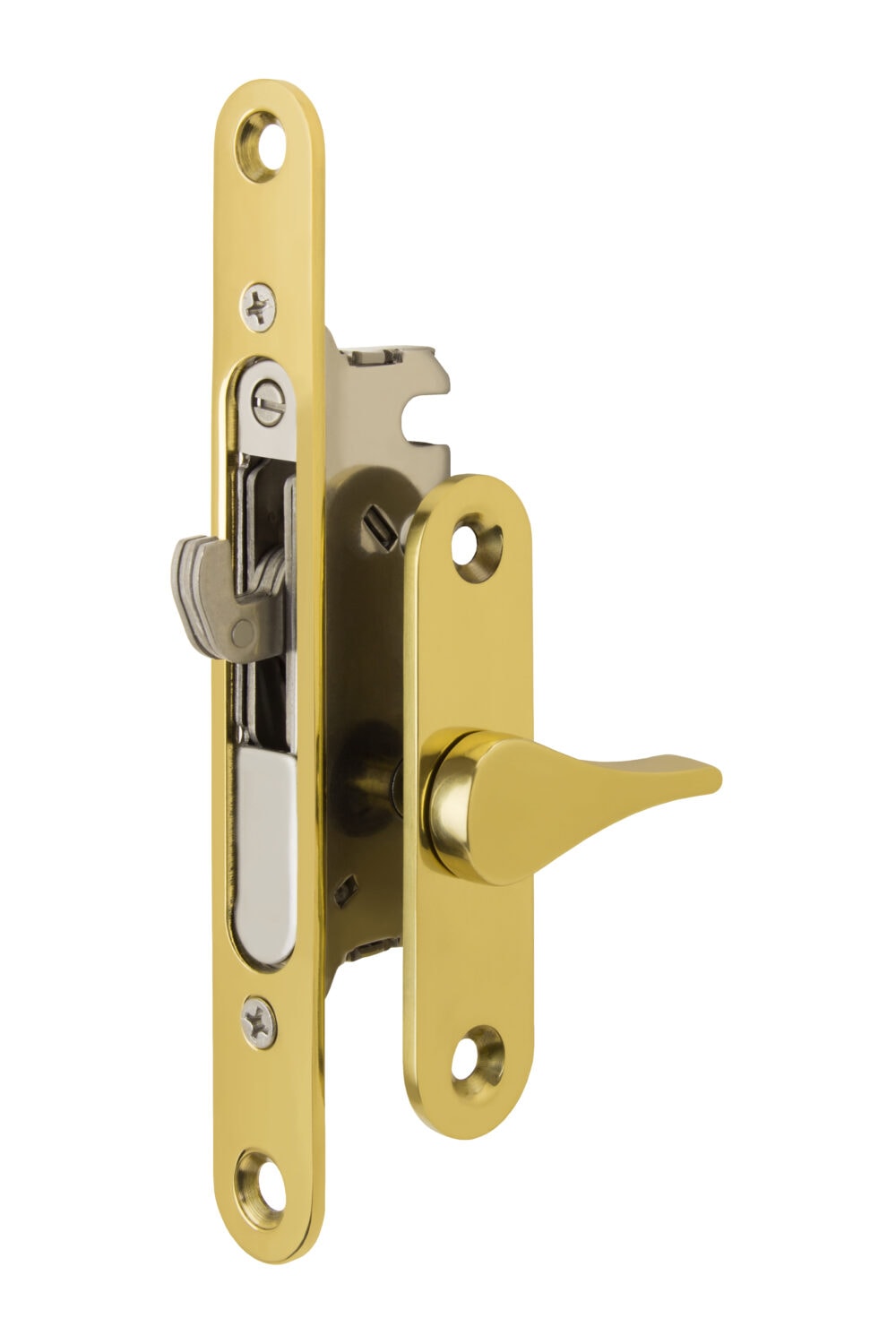

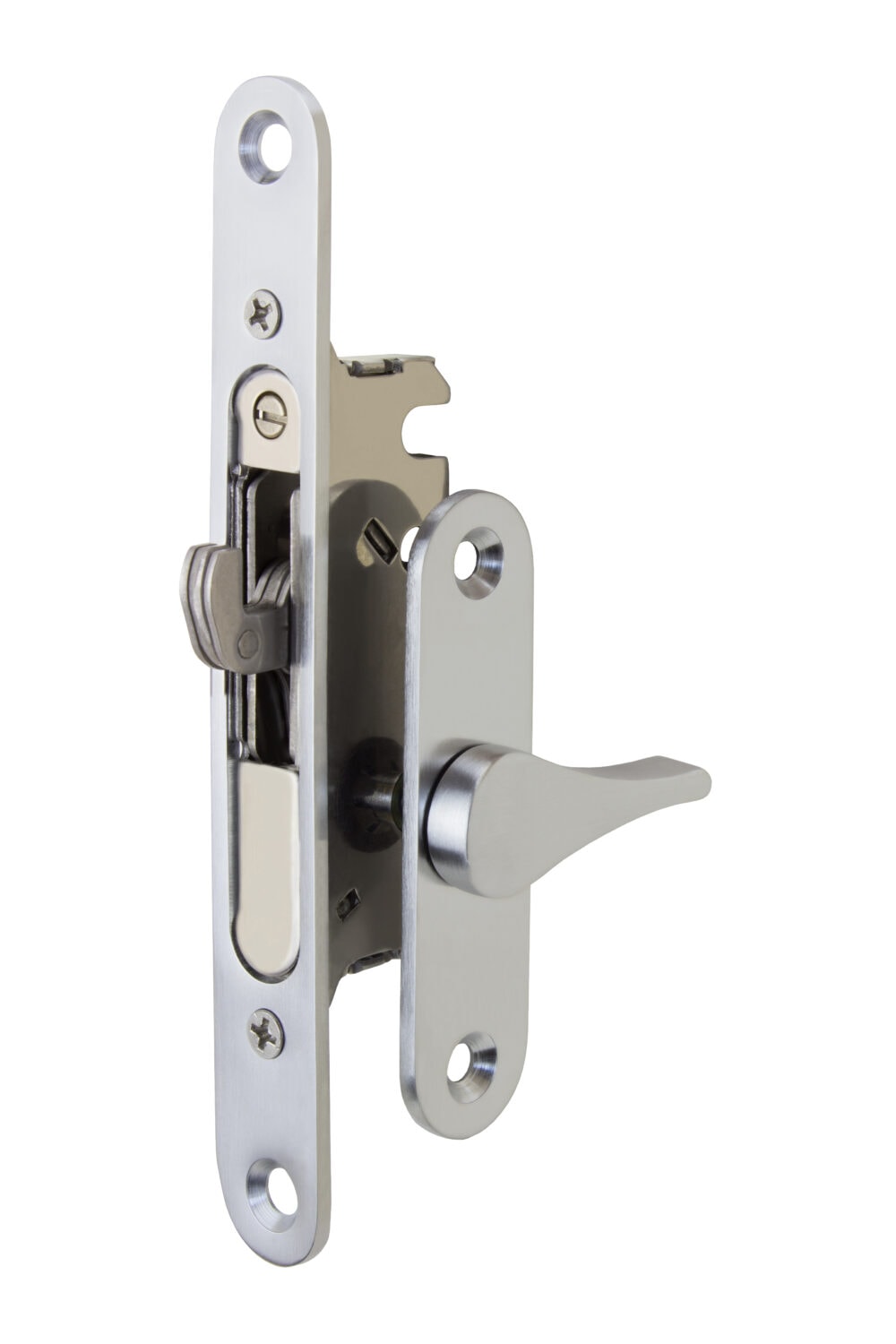

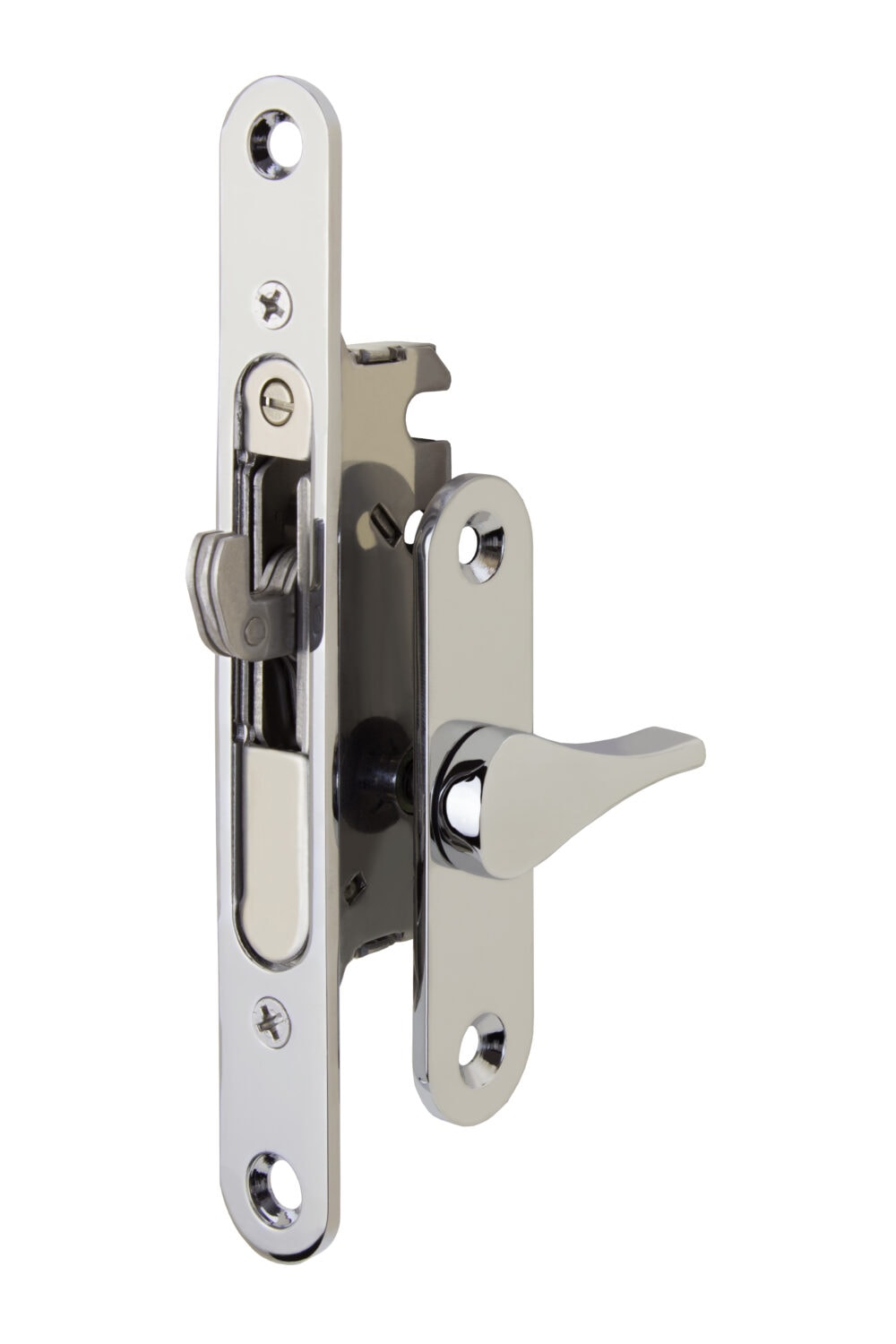

#4750 Sliding Screen Lock

Finishes:



Features:

  • Heavy duty lock for sliding screens
  • Stainless Steel mechanism
  • Hook style latch engages with strike for secure locking
  • Latch adjusting screw and adjustable strikes for proper alignment
  • Various strikes are available to achieve different Backsets (see ‘Part Numbers’ tab for details):
    • 7/8″
    • 1-3/8″

Description

Part Numbers:  See ‘Part Numbers’ tab

Our #4750 Sliding Screen Lock is a durable solution for your sliding screen doors.  The hook style latch securely engages with the strike to keep screens in place.  It can also be used on sliding windows.

  • Heavy duty lock for sliding screens
  • Stainless Steel mechanism
  • Hook style latch engages with strike for secure locking
  • Latch adjusting screw and adjustable strikes for proper alignment
  • Various strikes are available to achieve different Backsets (see ‘Part Numbers’ tab for details):
    • 7/8″
    • 1-3/8″

#4750 Sliding Screen Lock - 1-3/8" Backset (Standard)

Part #   4750C-Finish Code

  • Includes:
    • #4750-TT-E Escutcheon with Operable Lever
    • #745 Flush Pull
    • #3-90-SS Mechanism
    • #14AD Adapter
    • #6 Strike
  • Finish Codes (See Finish information at top of product page)

#4750 Sliding Screen Lock - 7/8" Backset (Non-Adjustable Strike)

Part #   4750A-Finish Code

  • Includes:
    • #4750-TT-E Escutcheon with Operable Lever
    • #745 Flush Pull
    • #3-90-SS Mechanism
    • #14AD Adapter
    • #8 Strike (see ‘Dimensions’ tab for strike details)
  • Finish Codes (See Finish information at top of product page)

#4750 Sliding Screen Lock - 7/8" Backset (Adjustable Strike)

Part #   4750B-Finish Code

  • Includes:
    • #4750-TT-E Escutcheon with Operable Lever
    • #745 Flush Pull
    • #3-90-SS Mechanism
    • #14AD Adapter
    • #9 Strike (see ‘Dimensions’ tab for strike details)
  • Finish Codes (See Finish information at top of product page)

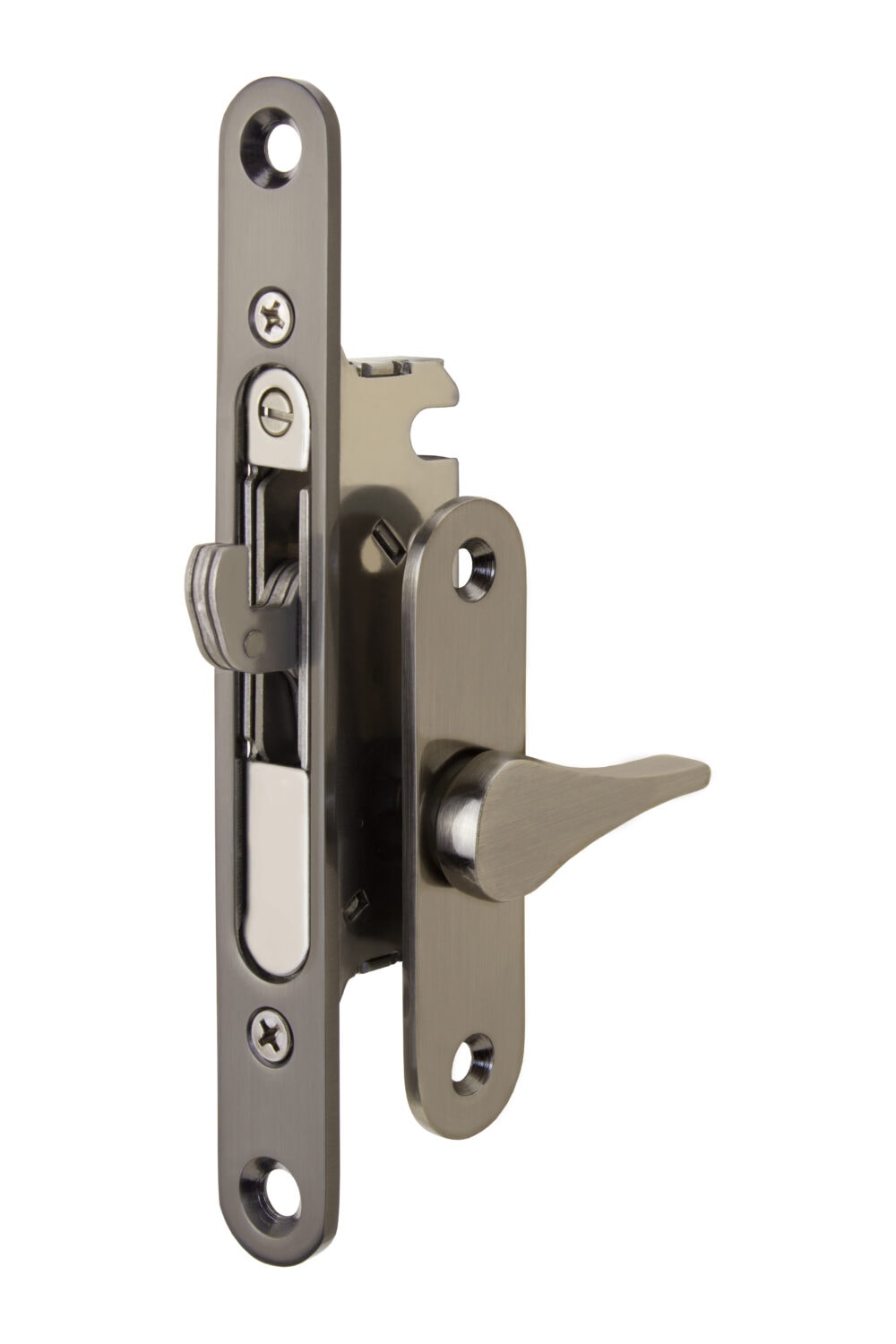

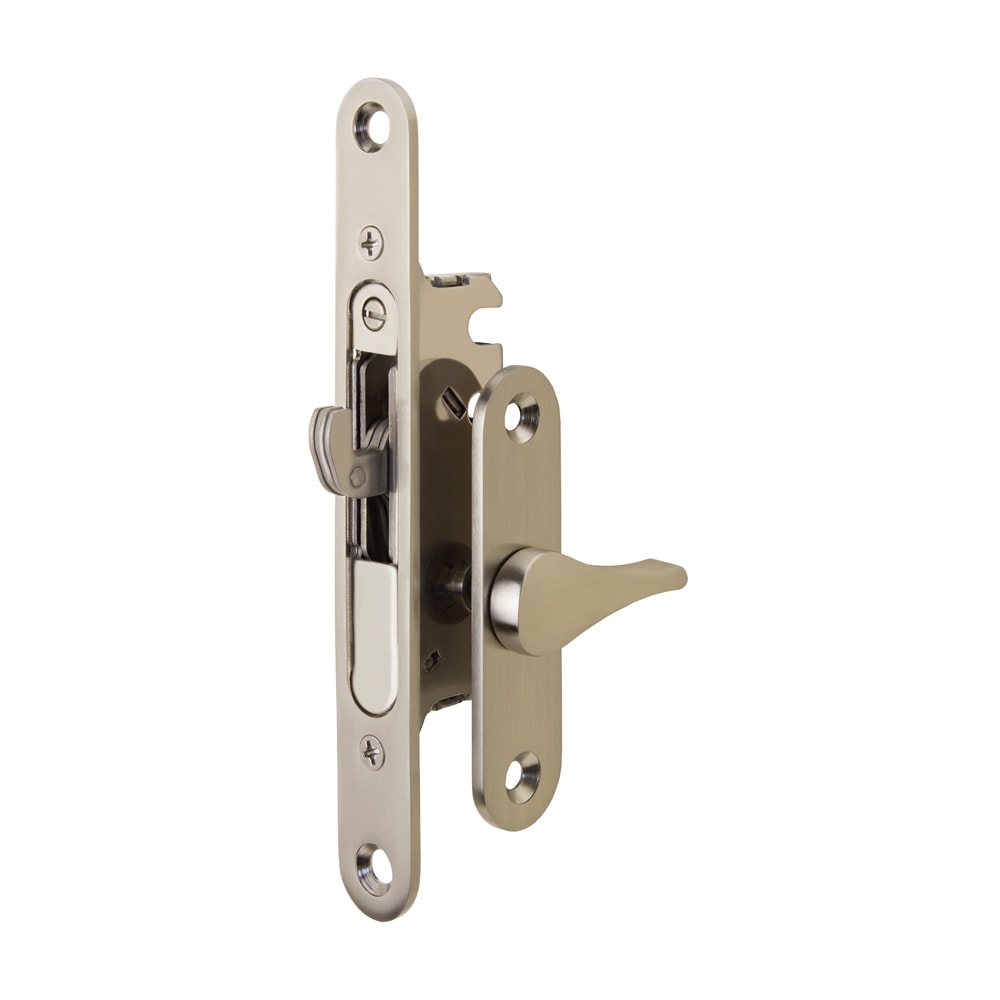

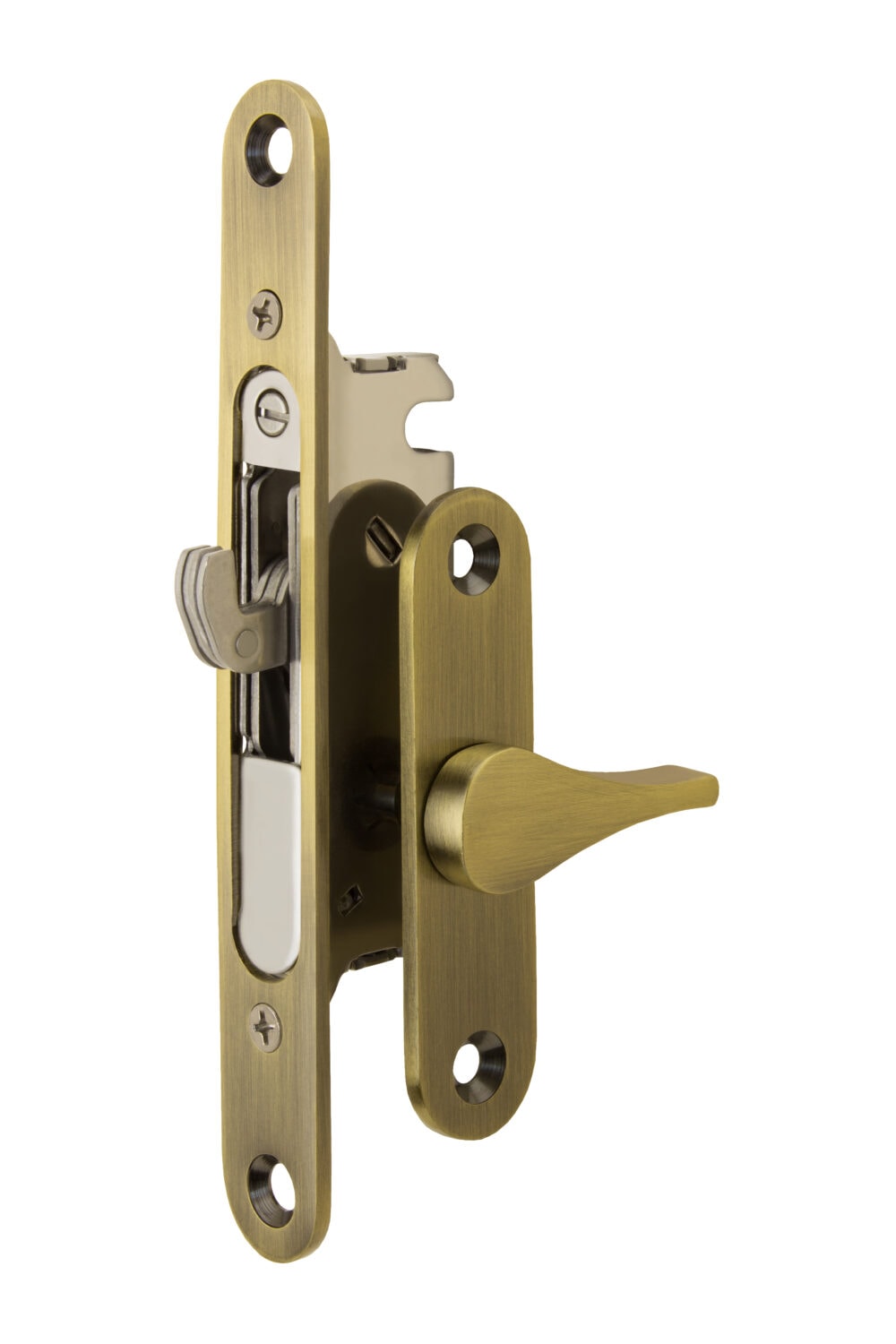

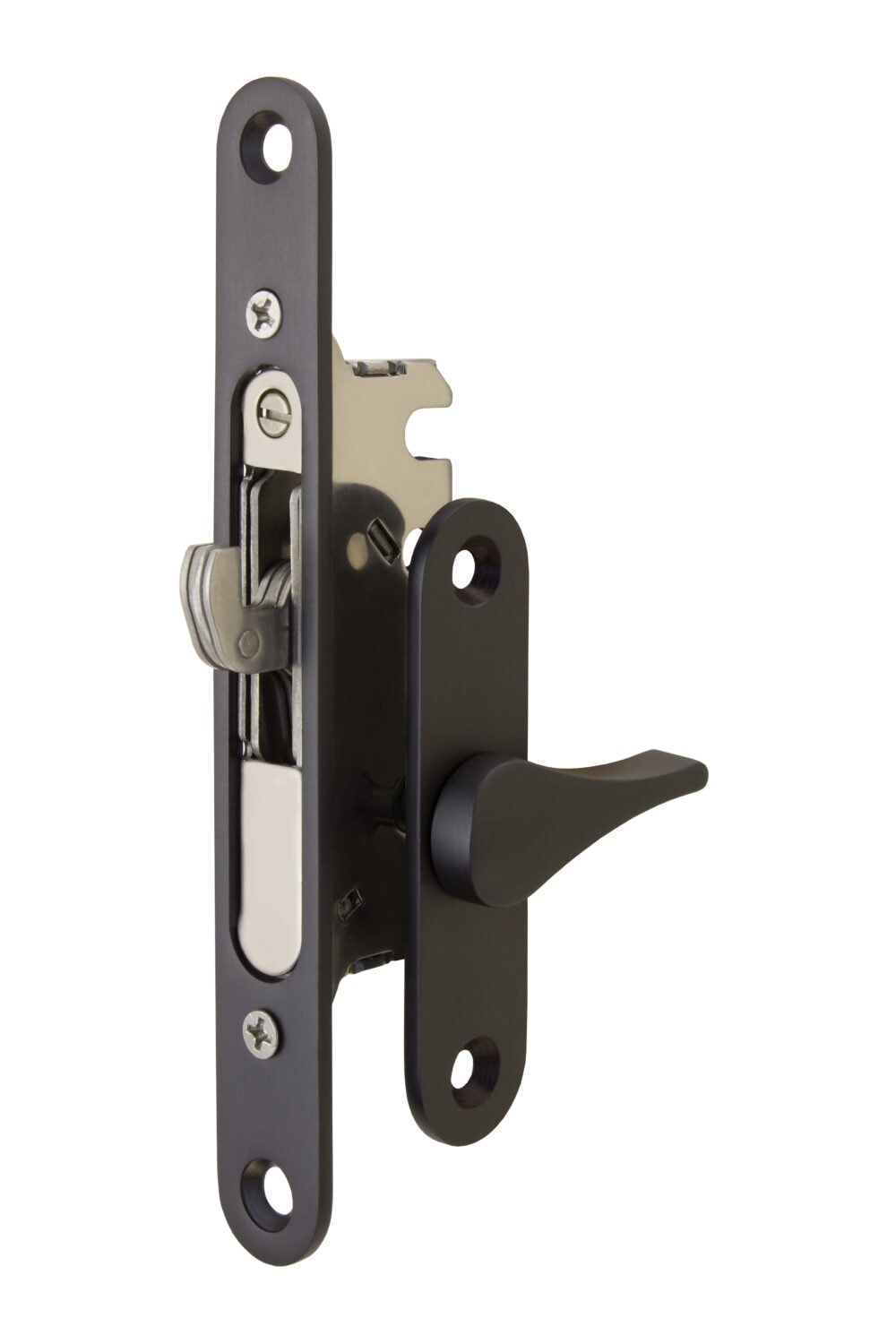

#4750 Sliding Screen Lock

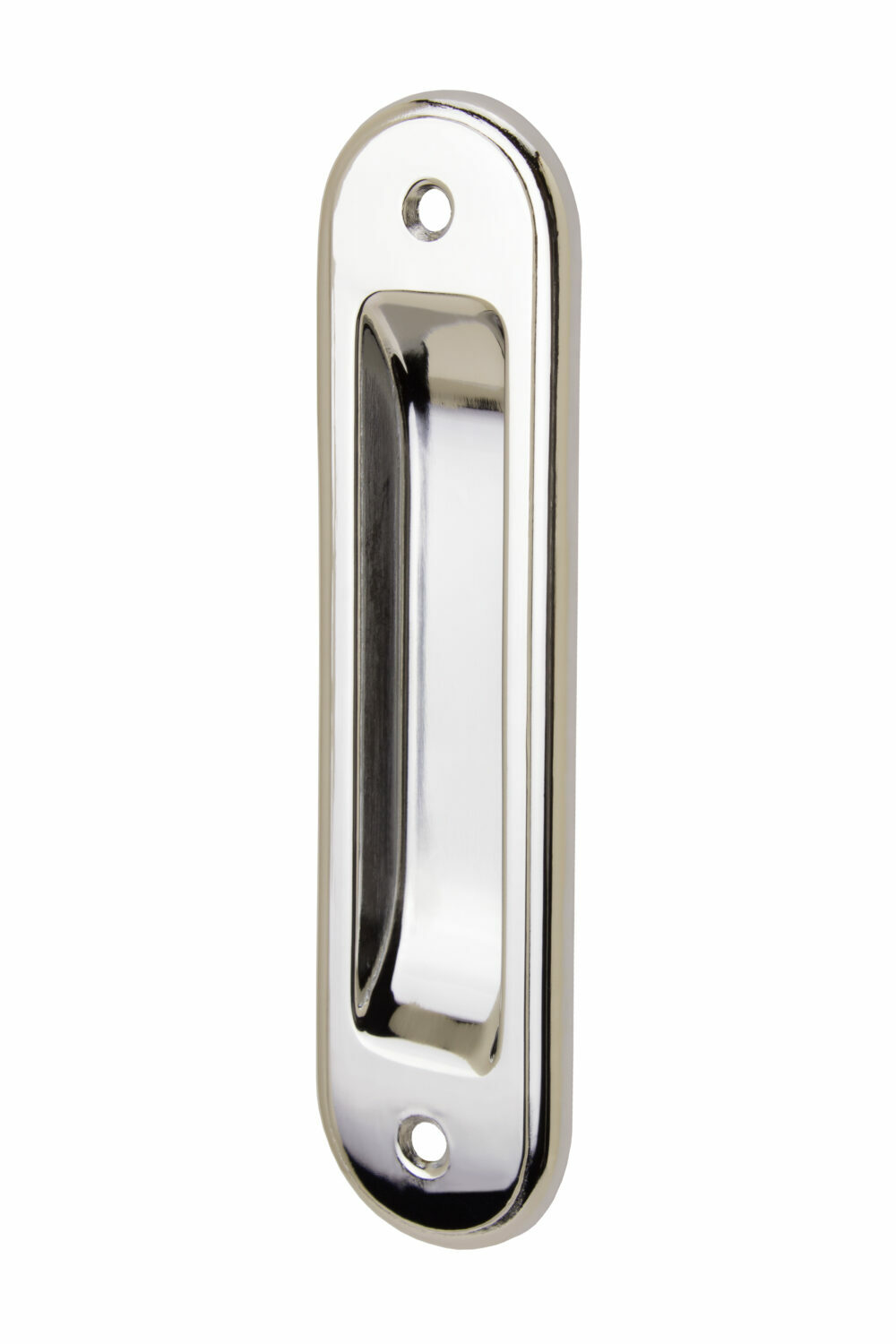

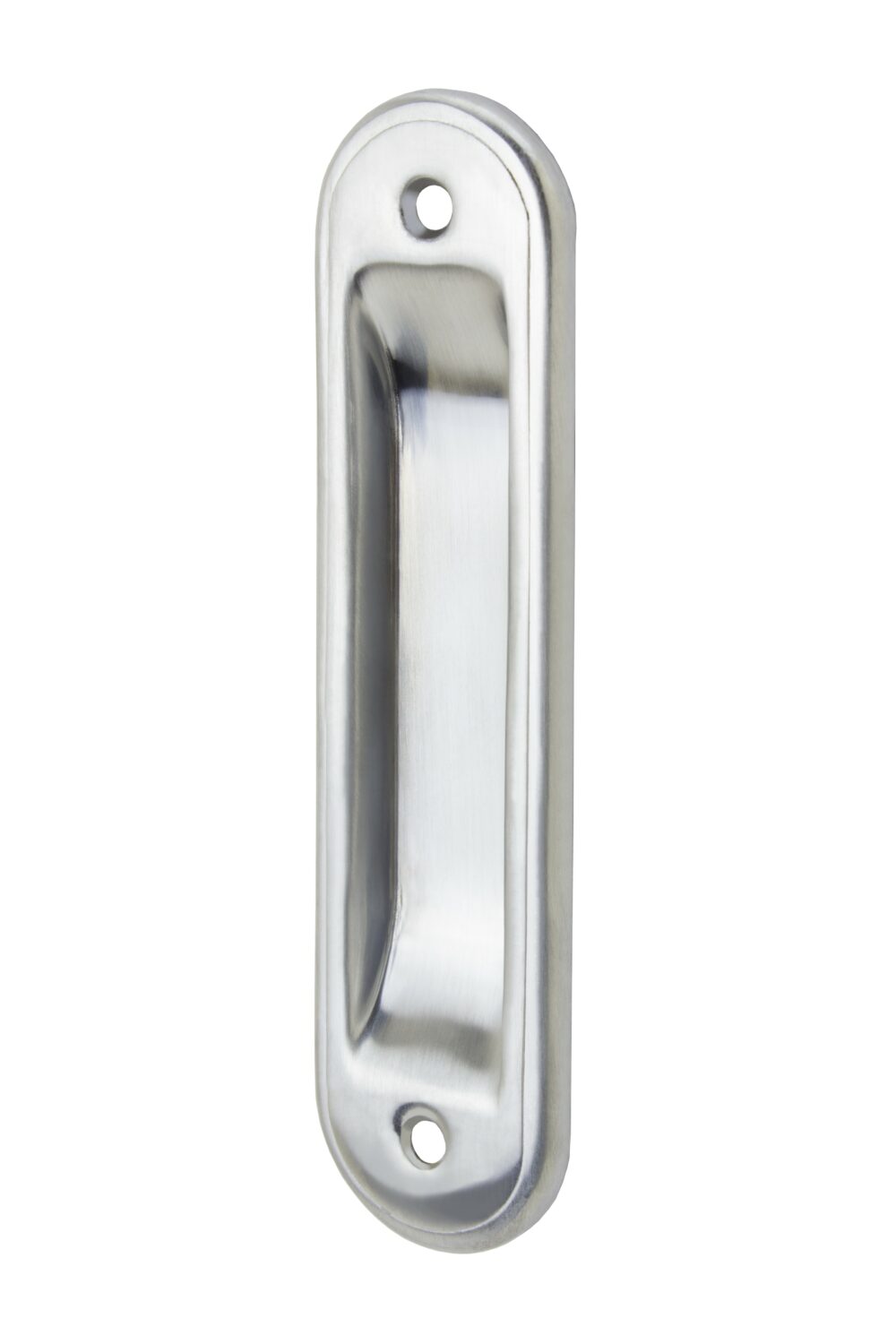

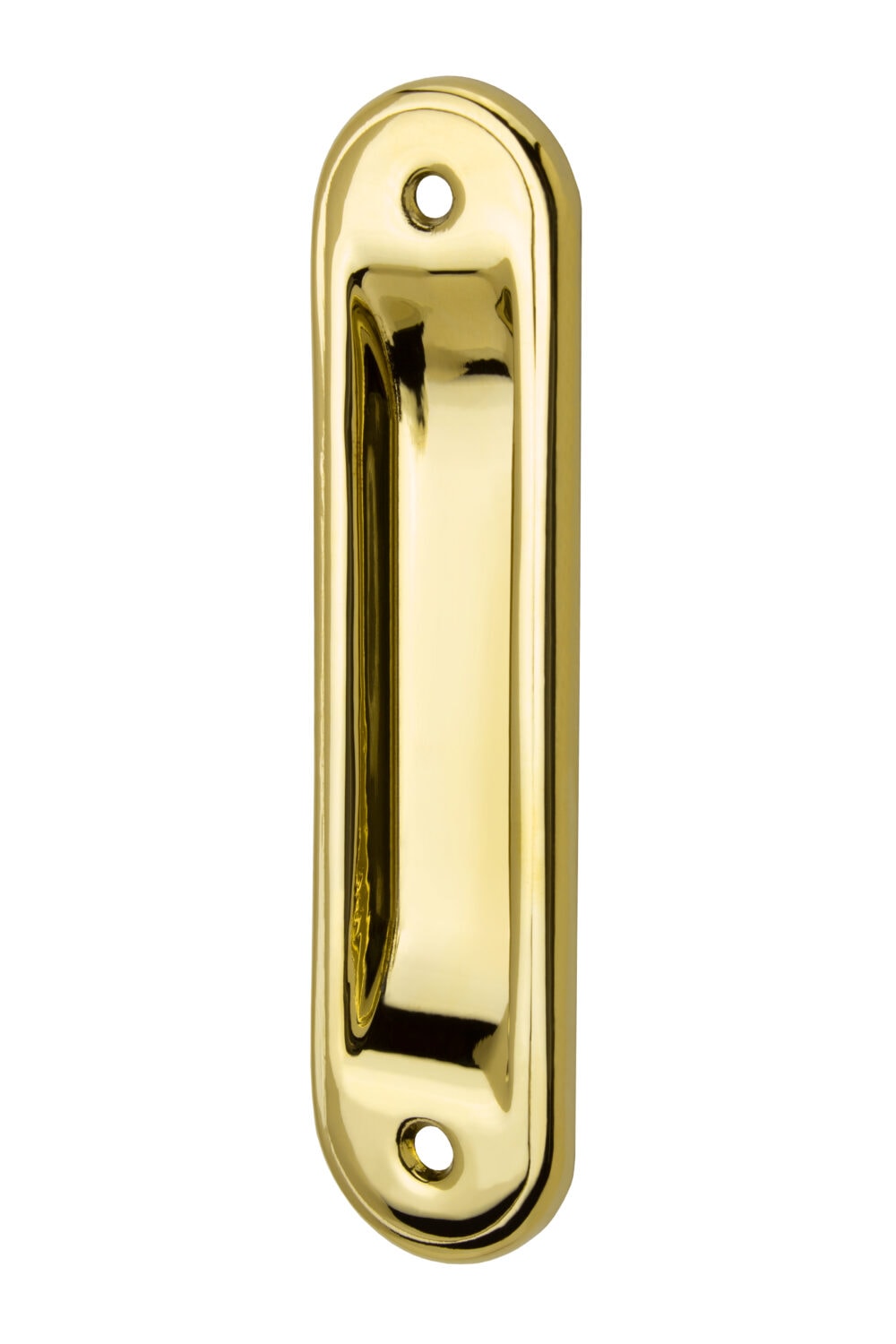

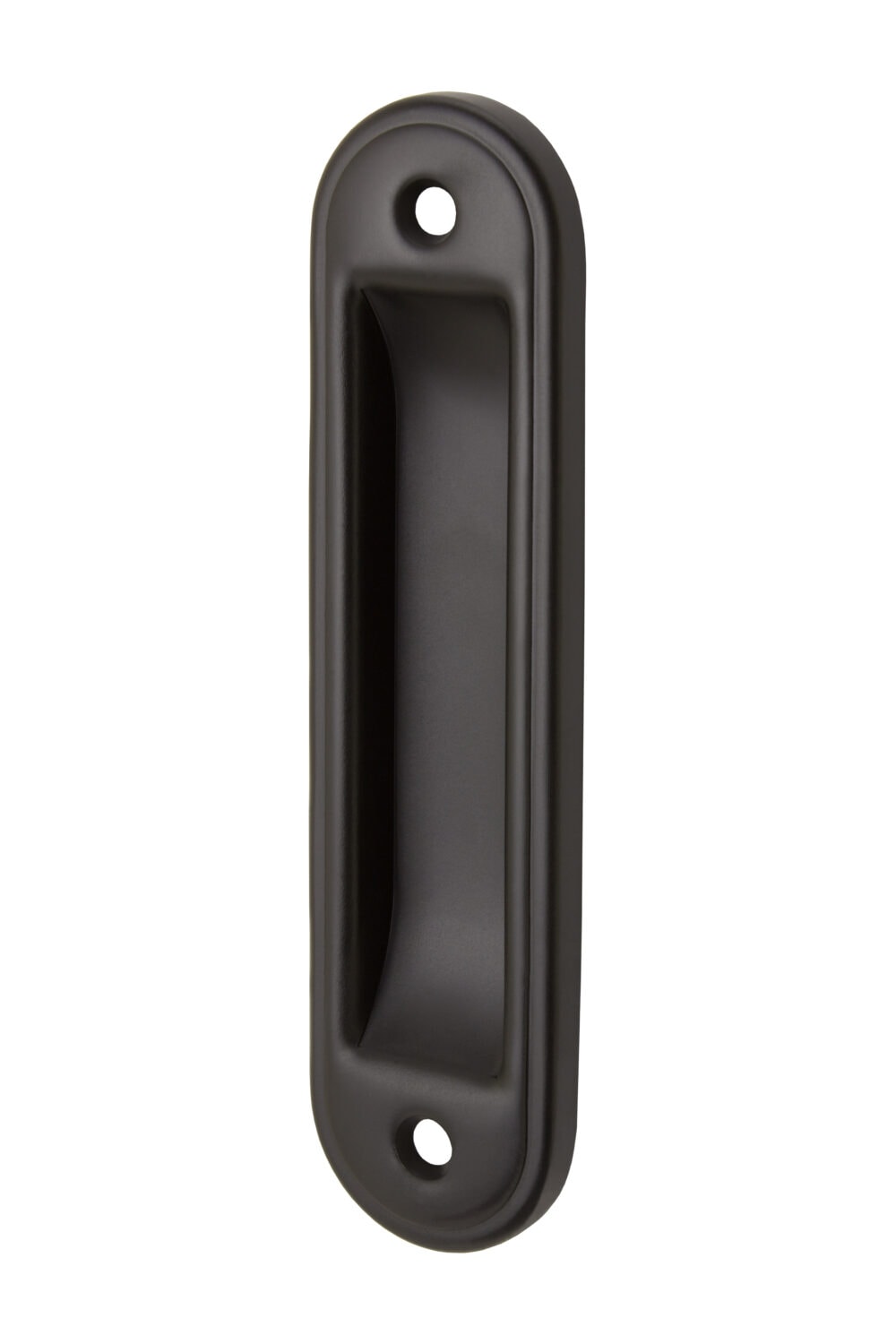

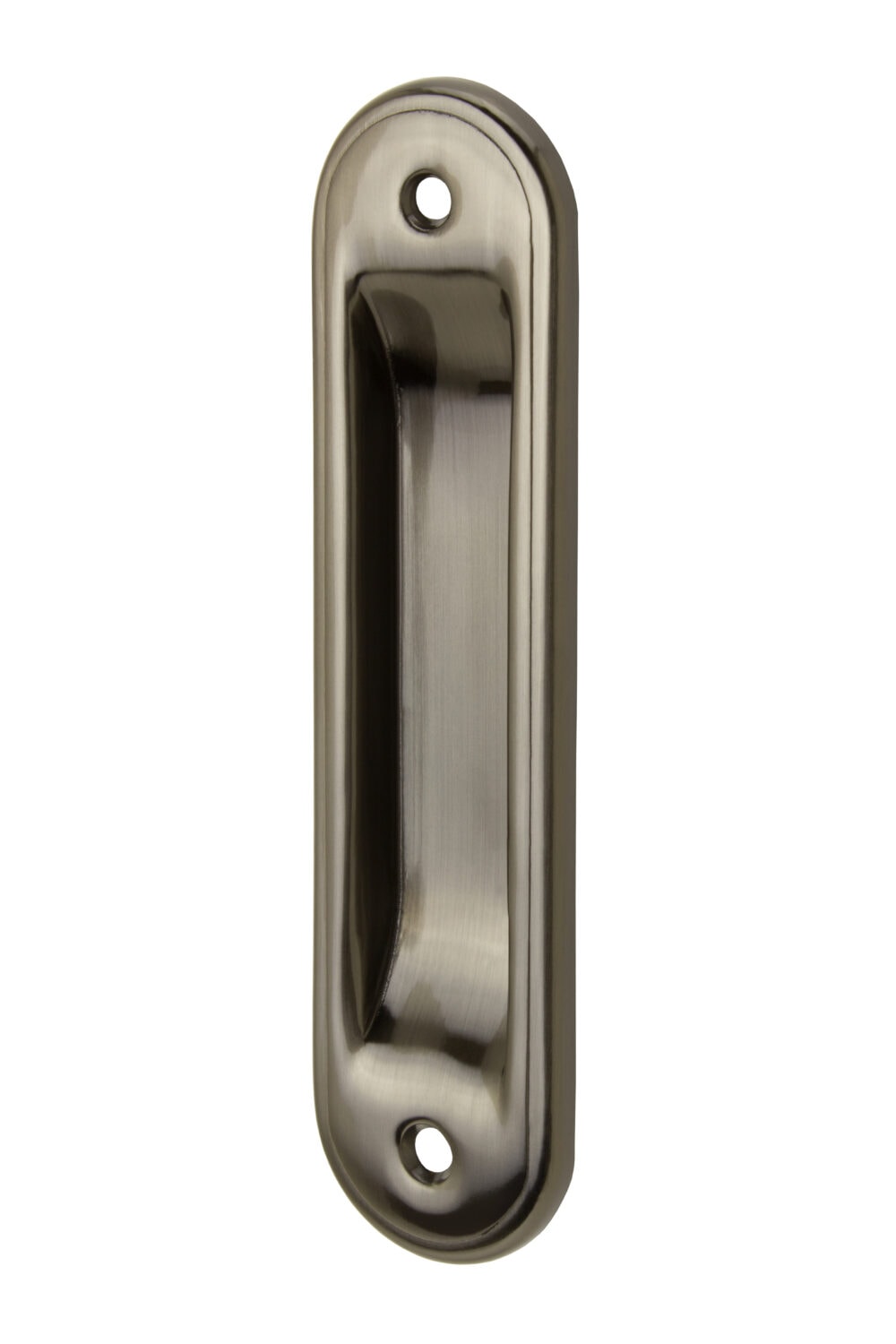

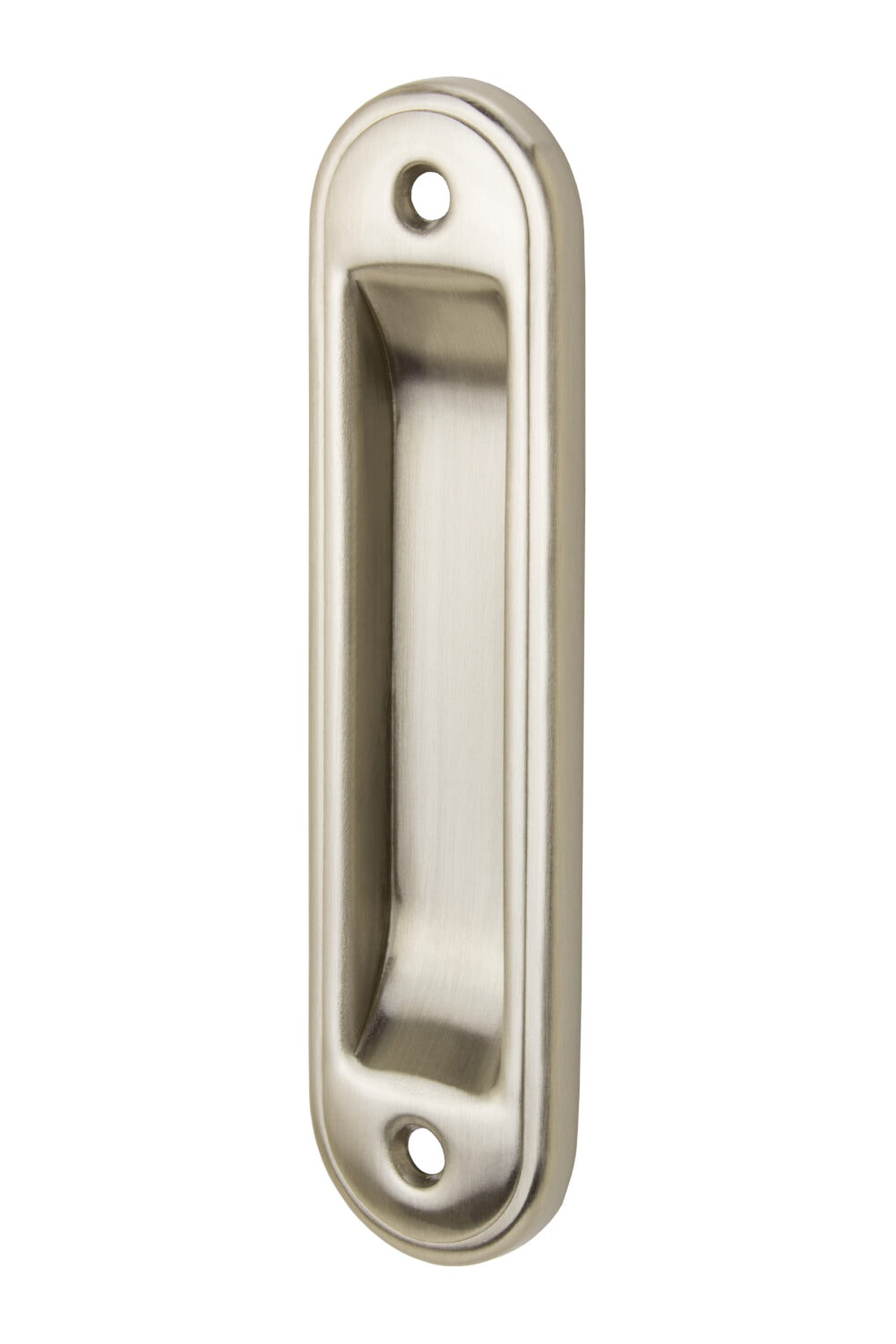

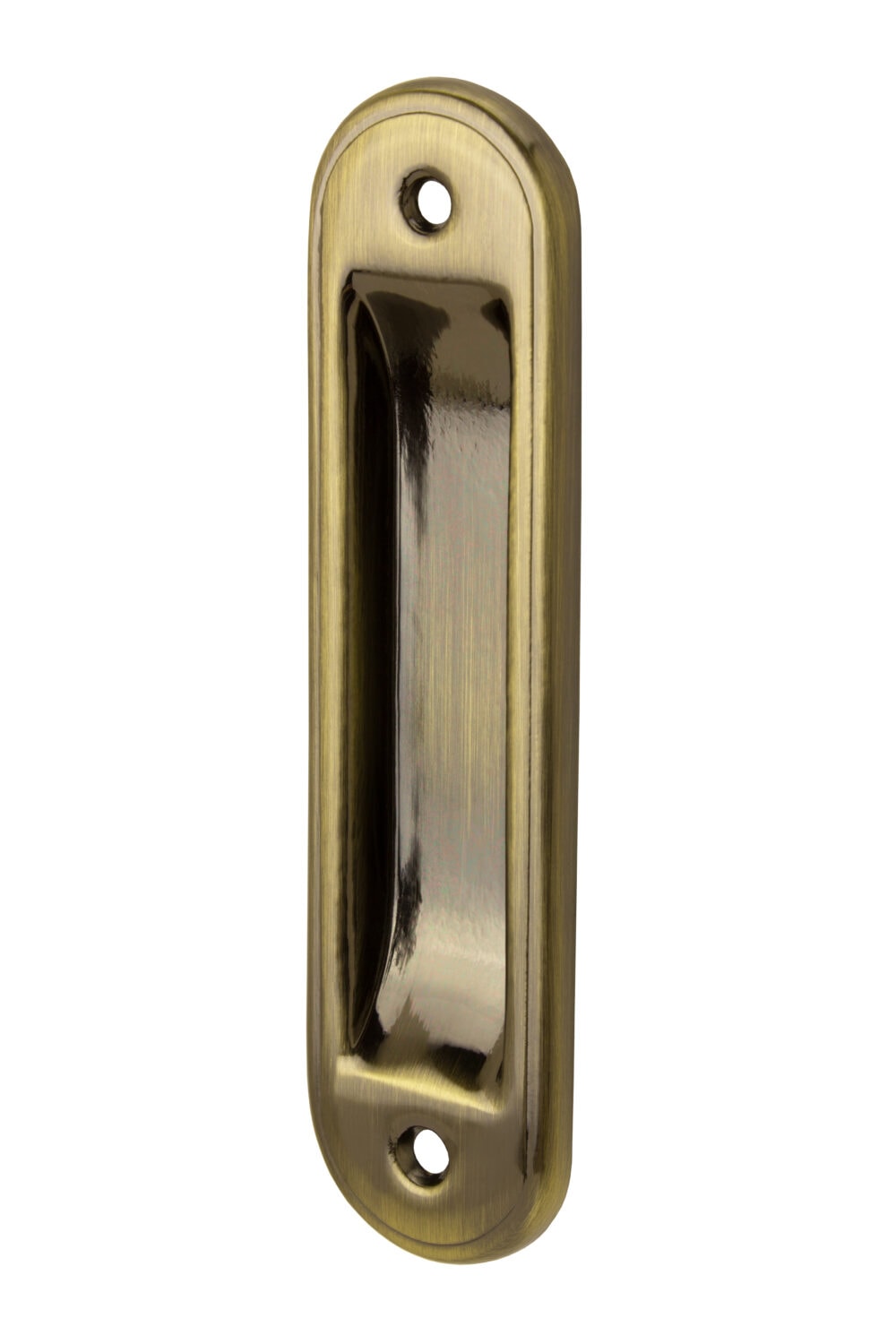

#745 Flush Pull (Exterior)

Strike Options

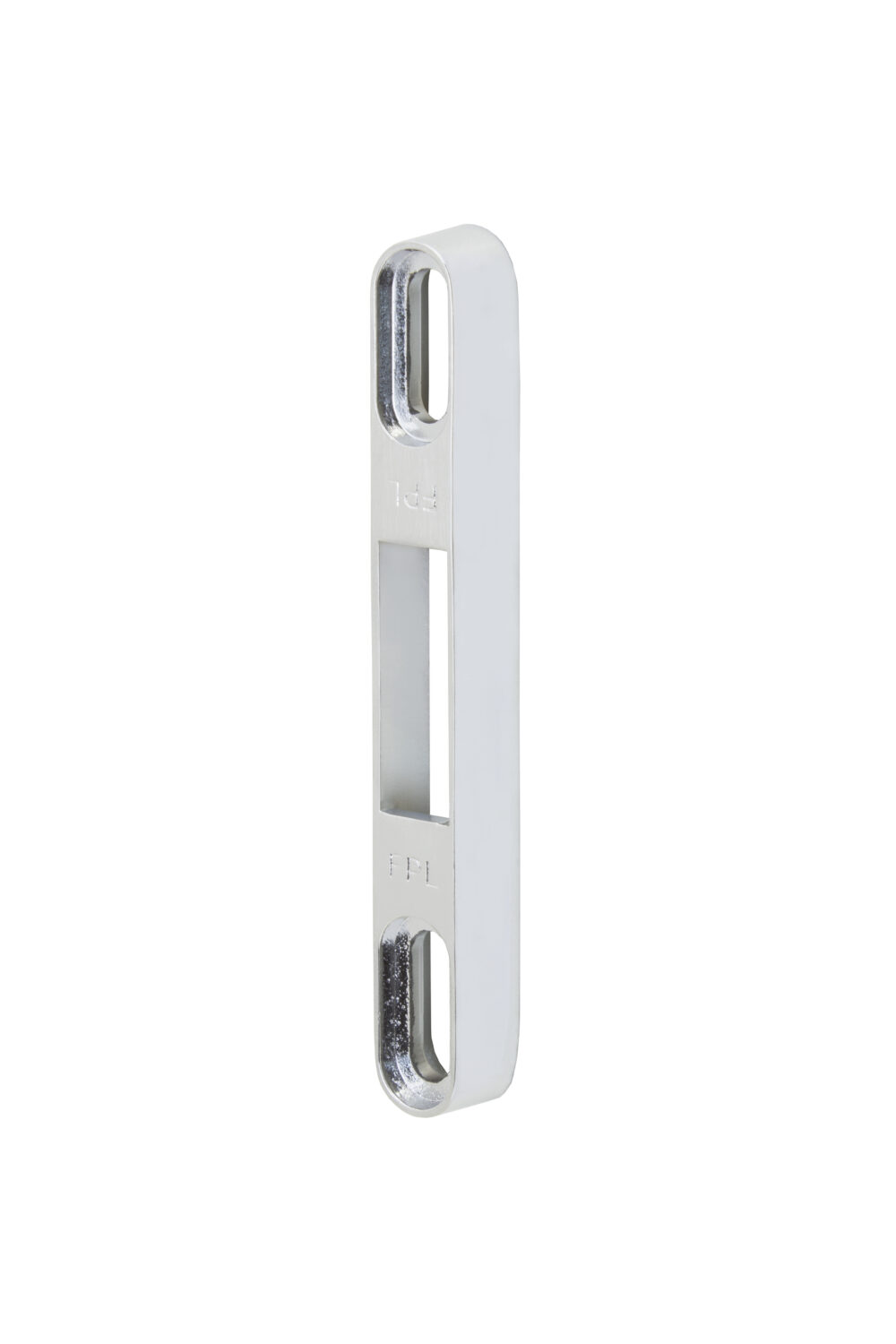

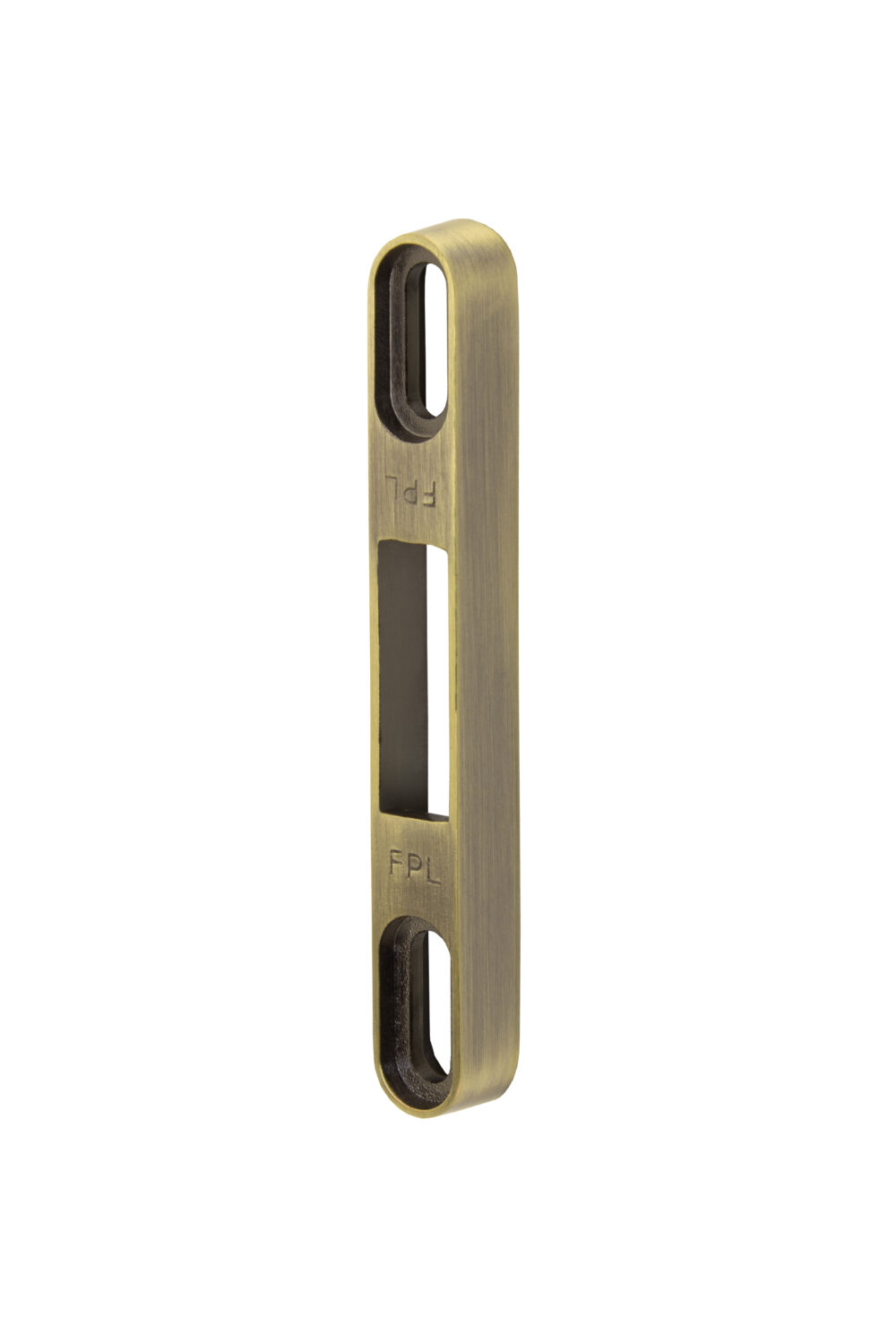

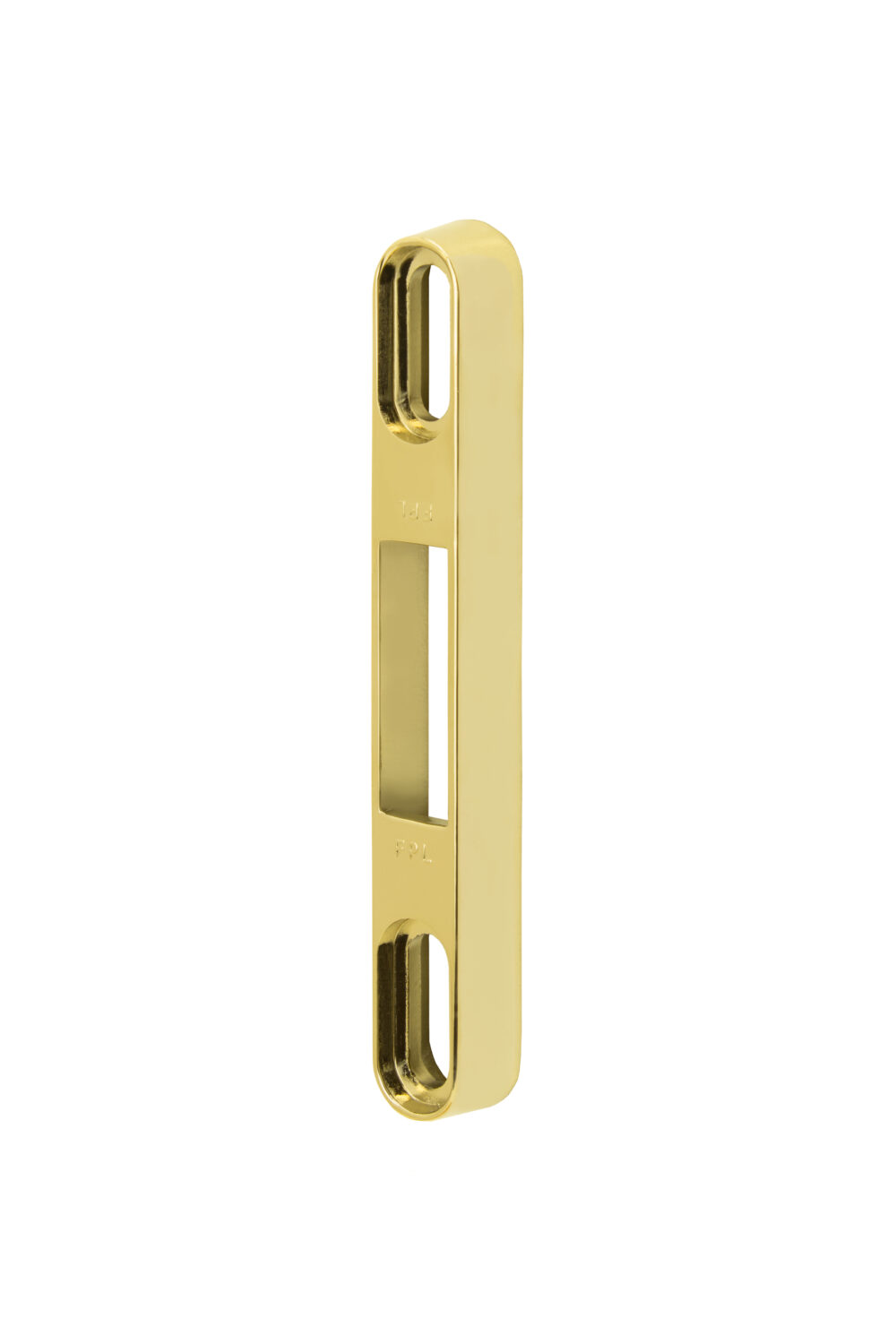

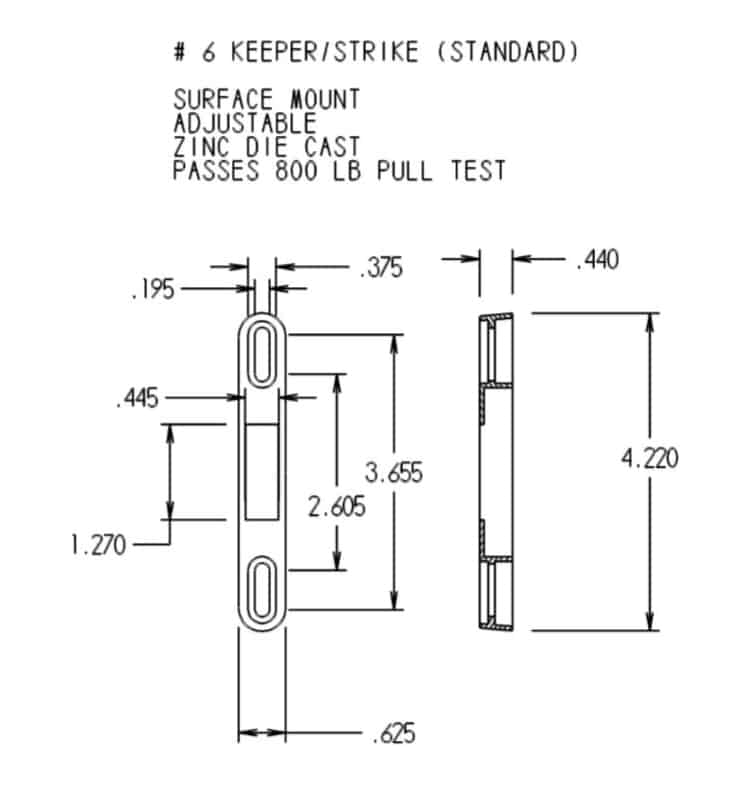

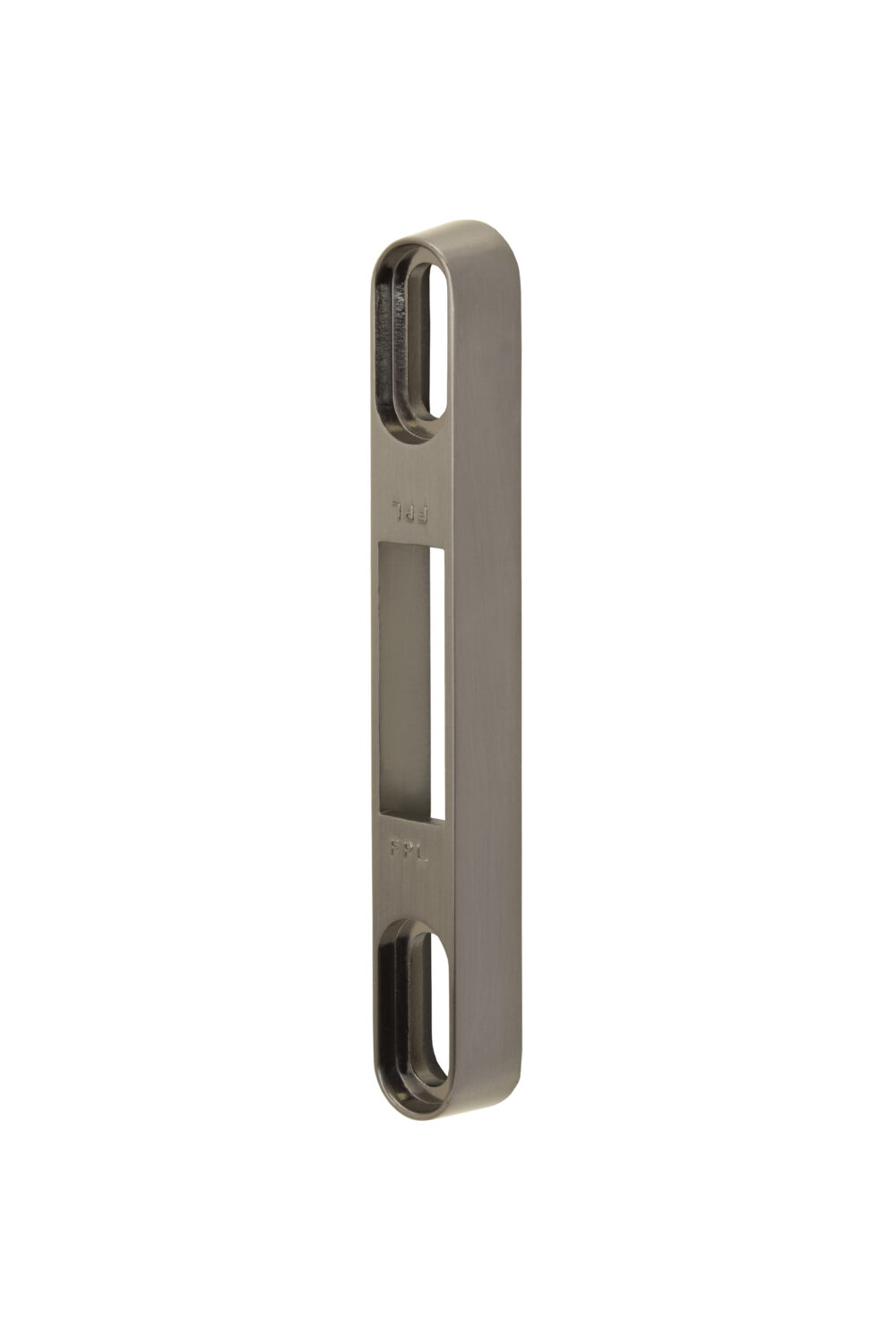

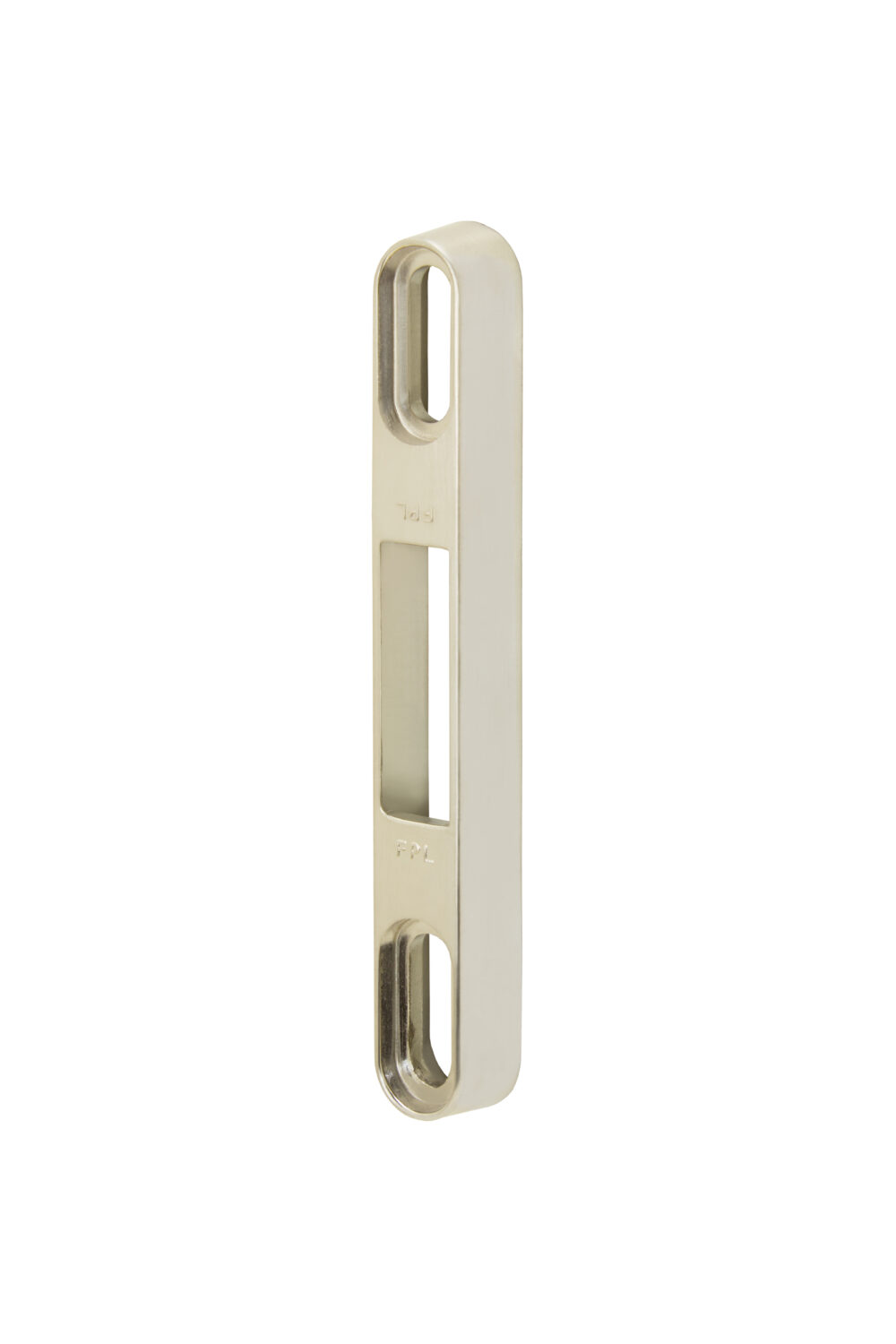

#6 Strike (Standard):

  • Surface mounted strike (adjustable) that is used with a Backset of 1-3/8″

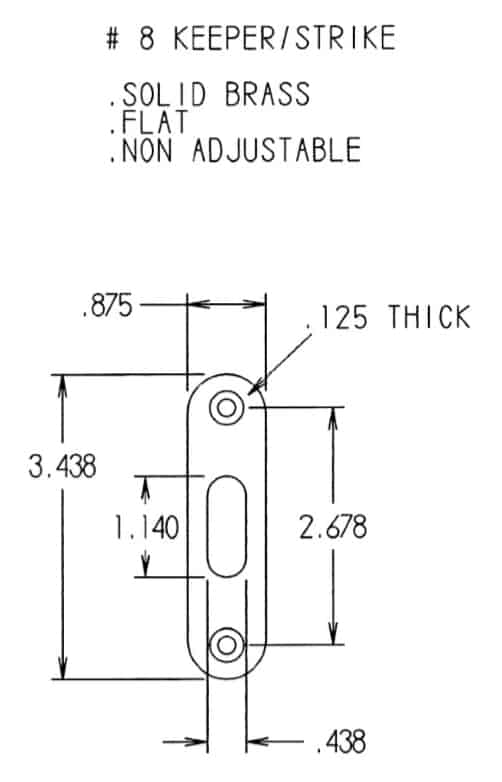

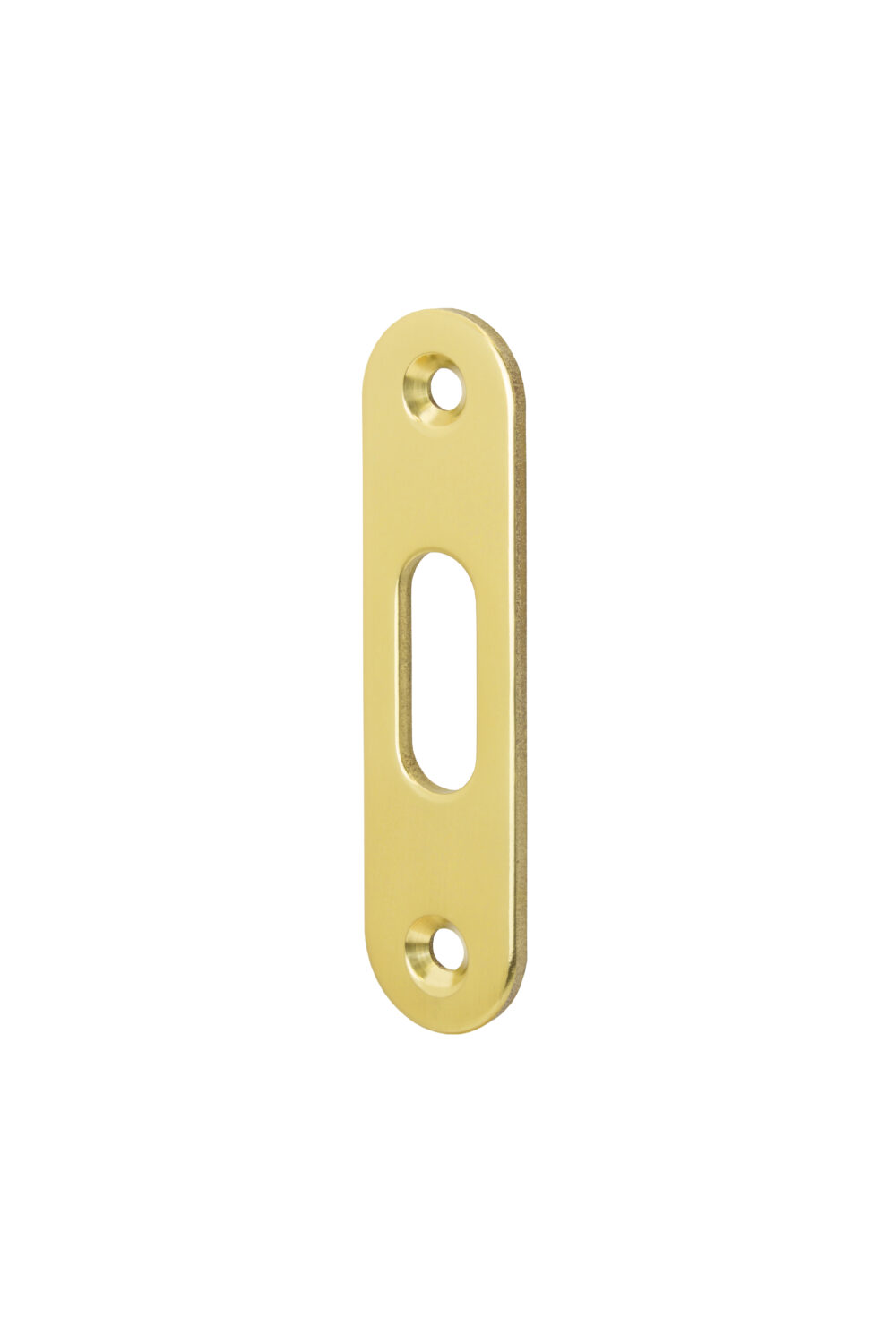

#8 Strike (Optional):

  • Flat, non-adjustable, surface mounted strike that is used with a Backset of 7/8″

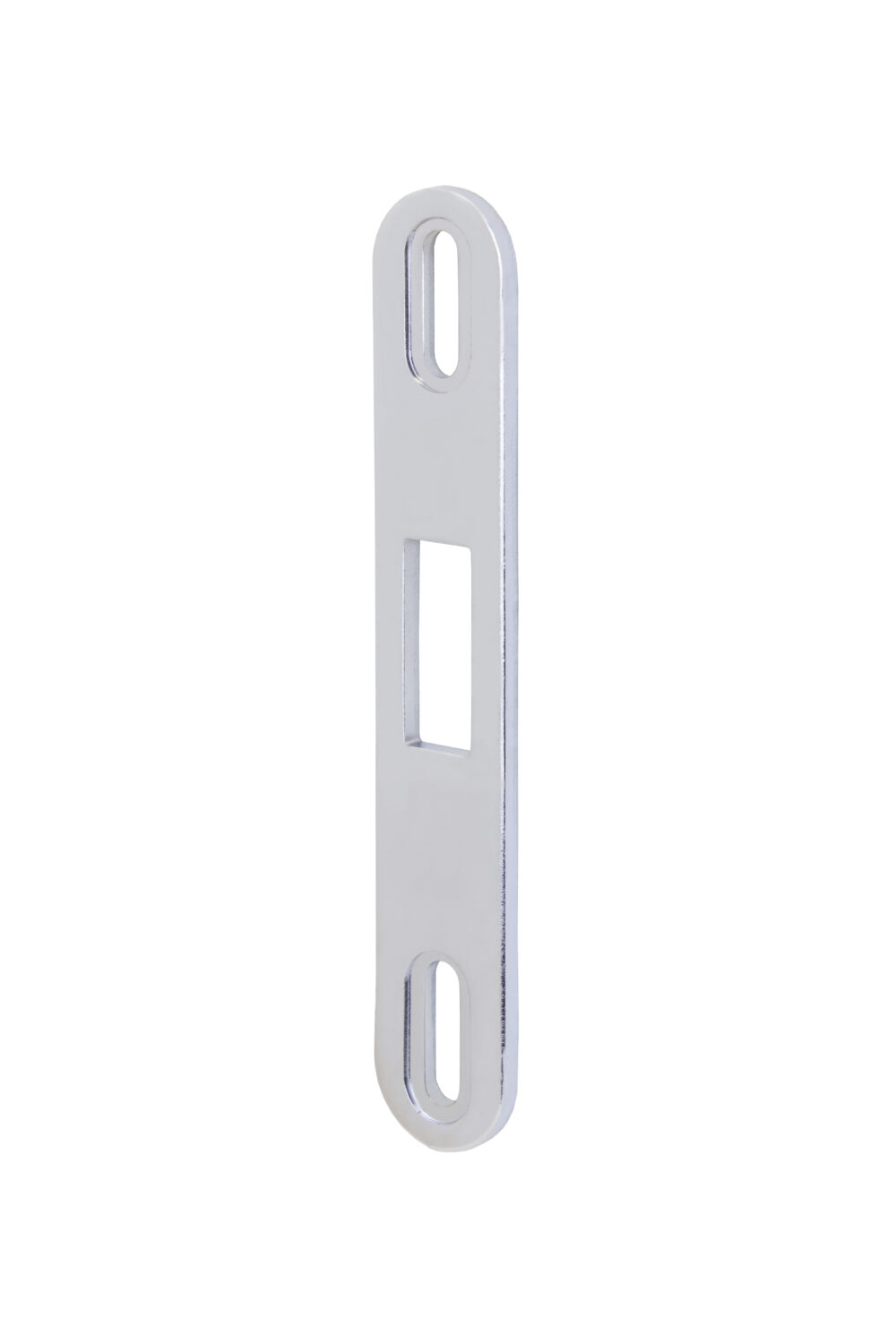

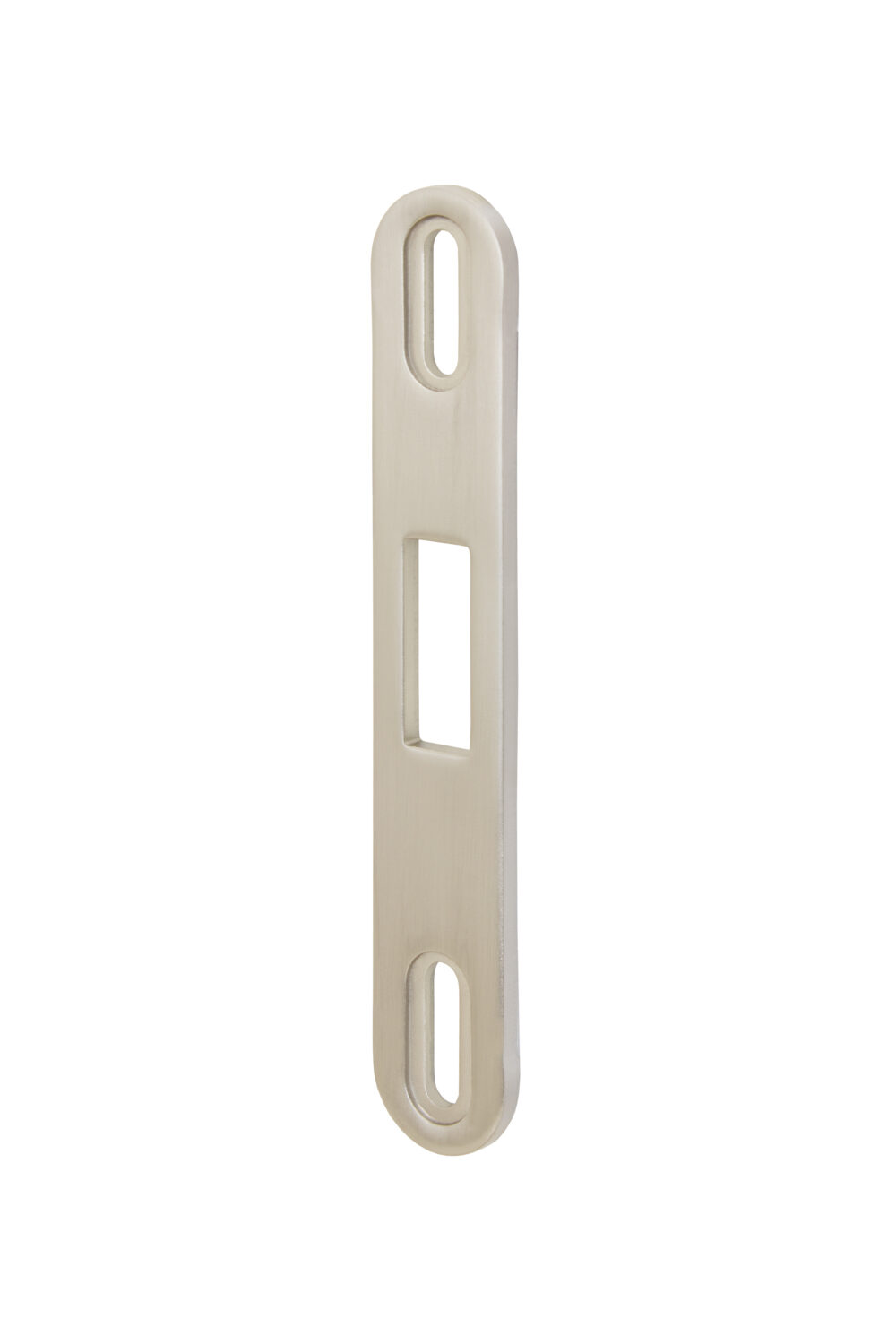

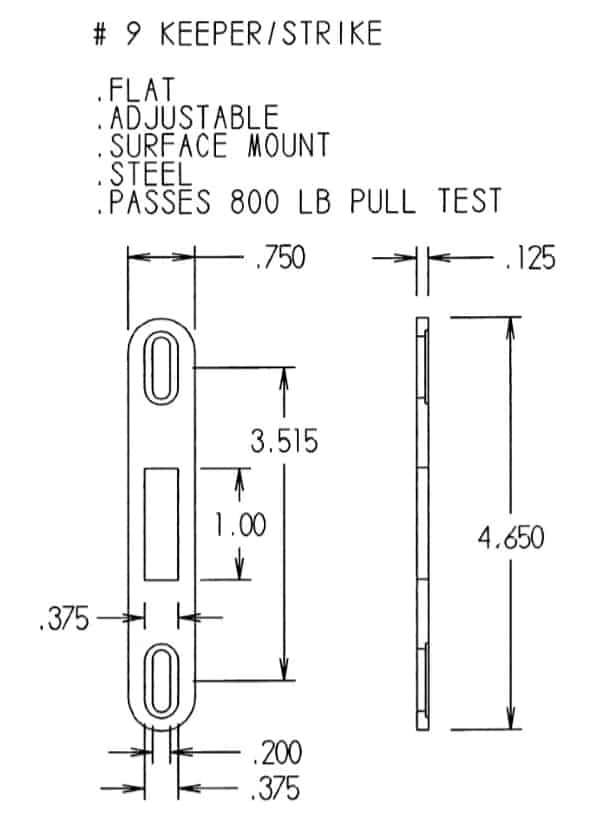

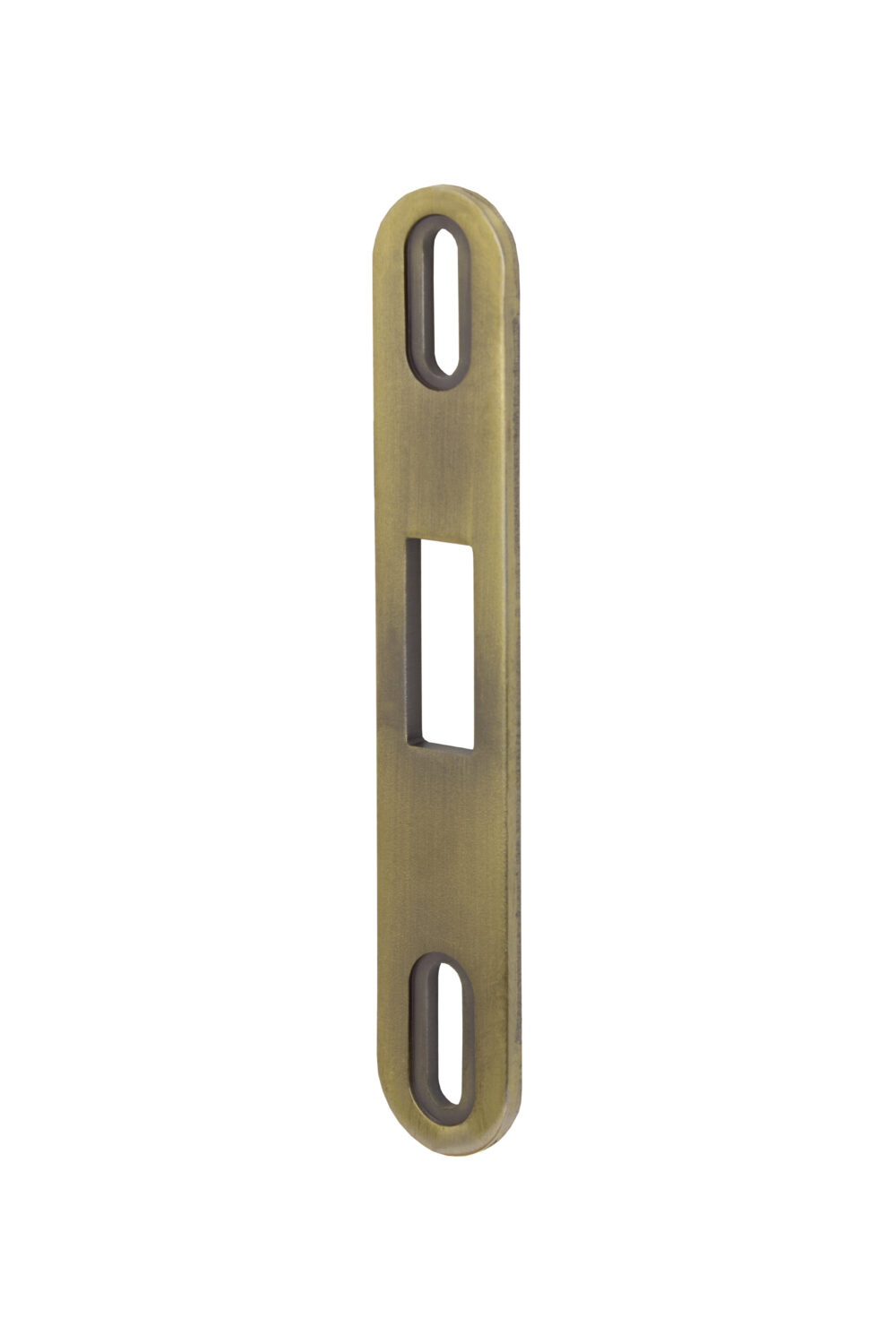

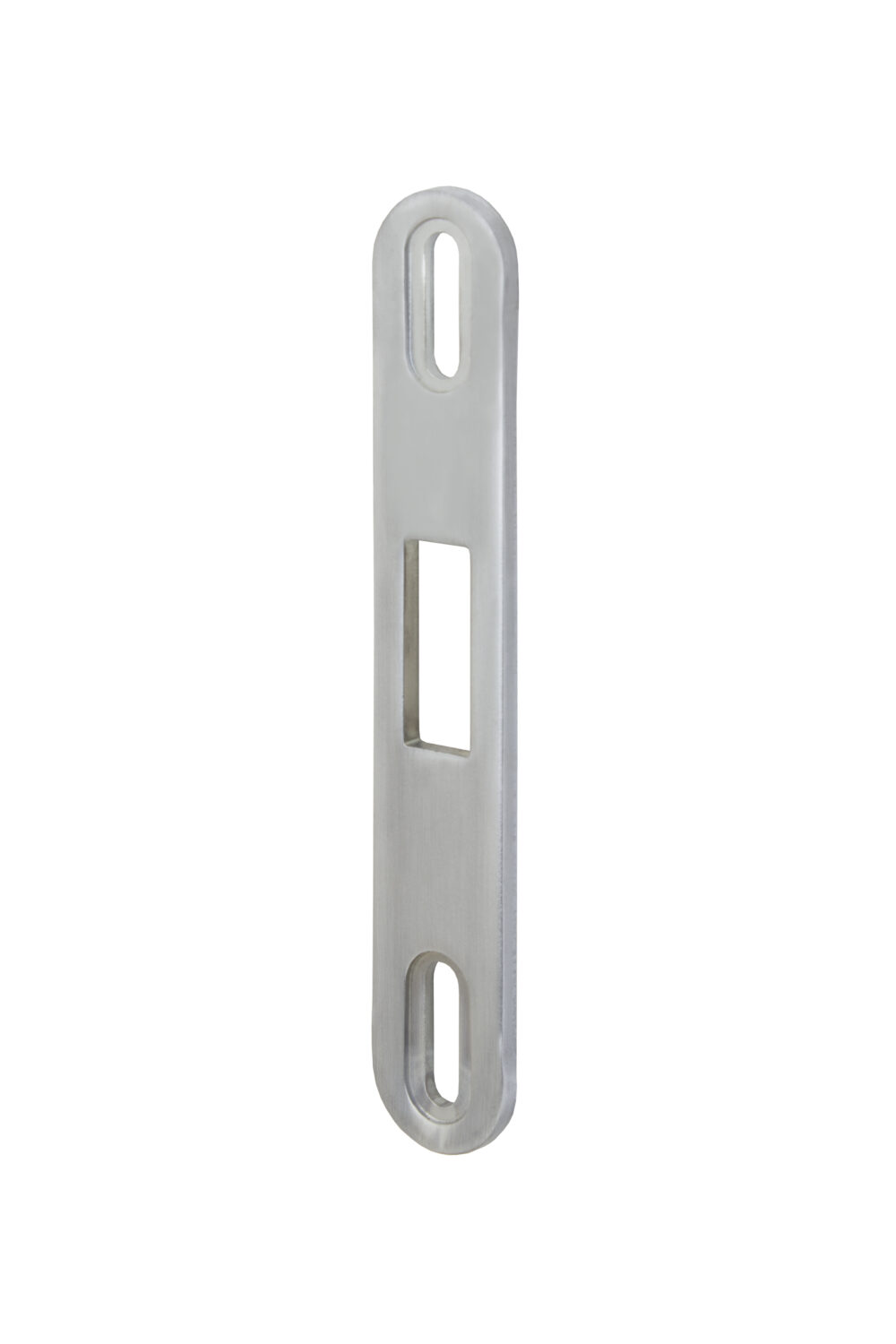

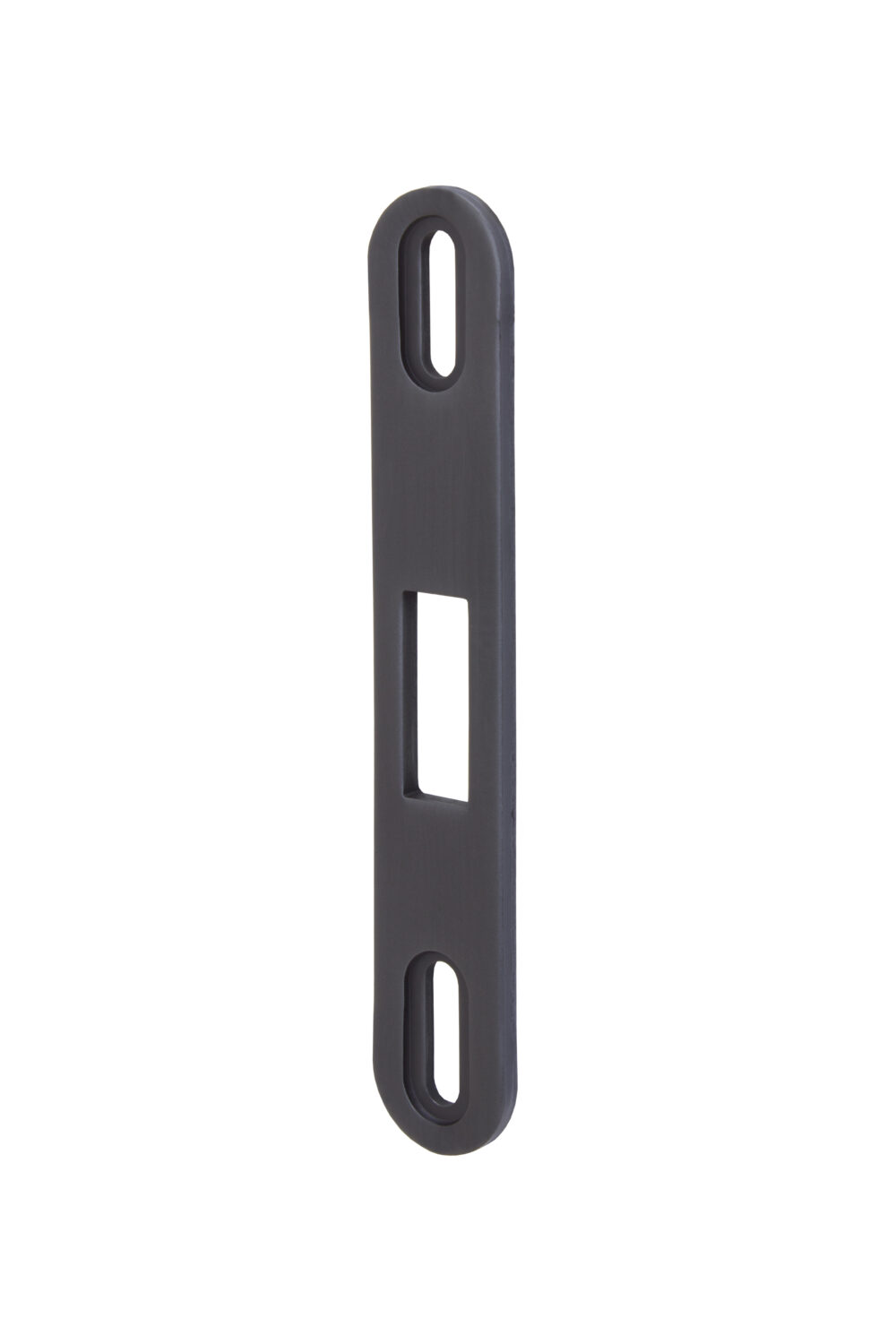

#9 Strike (Optional):

  • Flat surface mounted strike (adjustable) that is used with a Backset of 7/8″

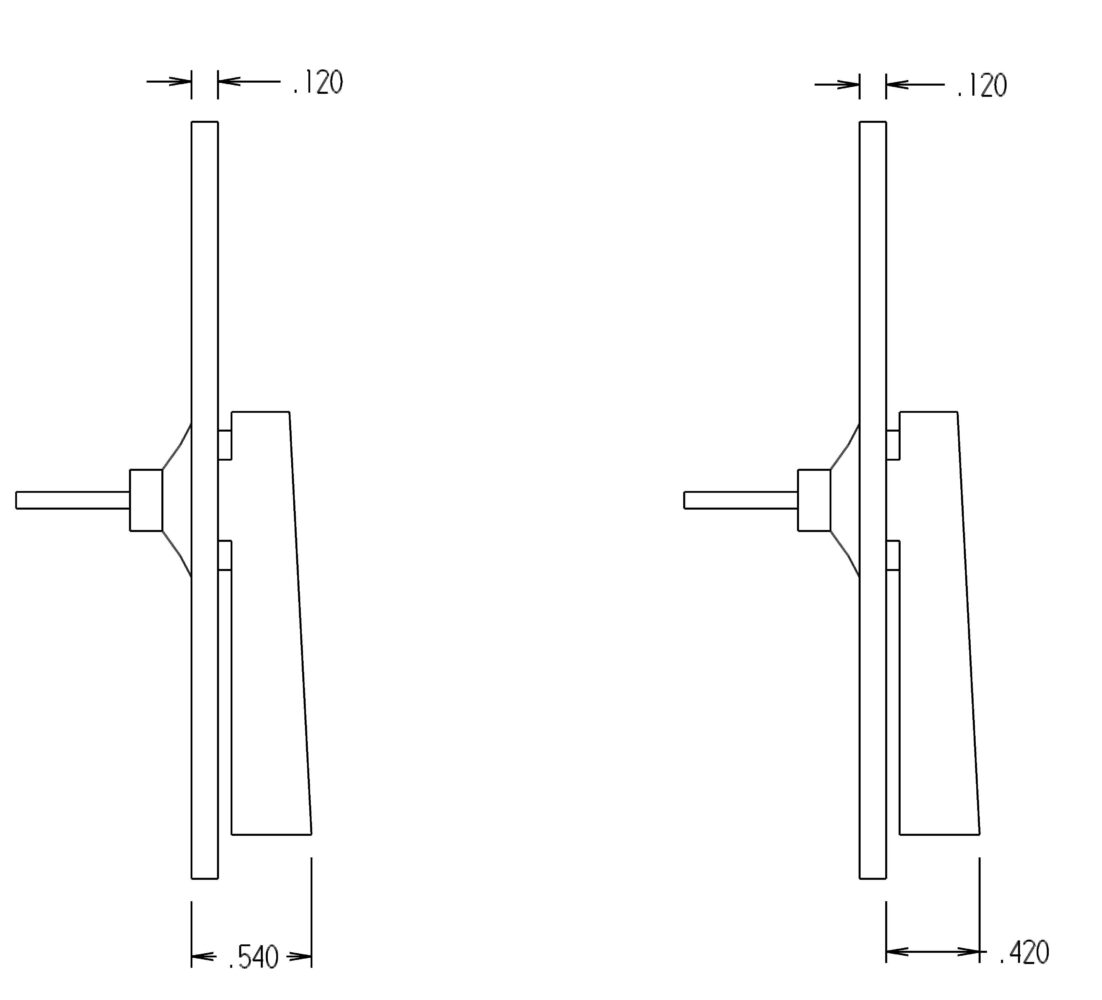

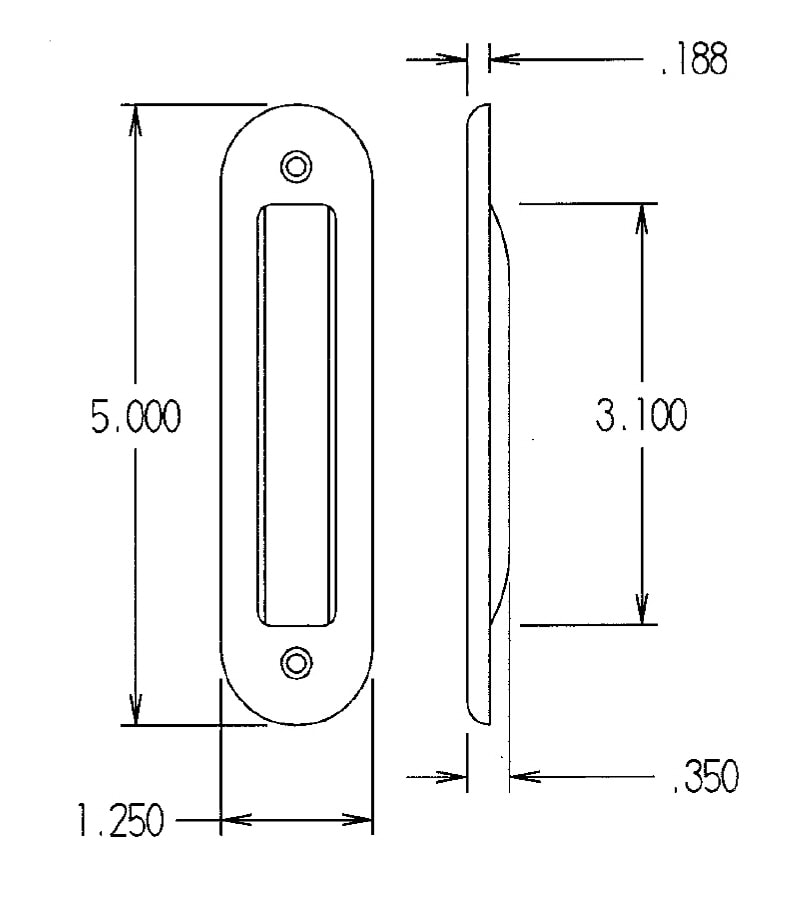

Interior Operator and Exterior Flush Pull Dimensions

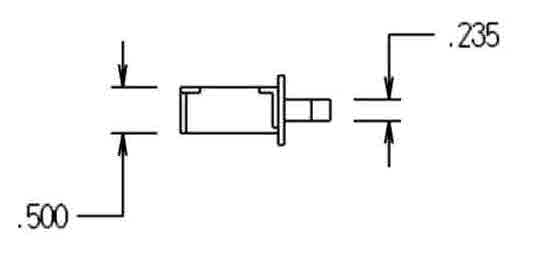

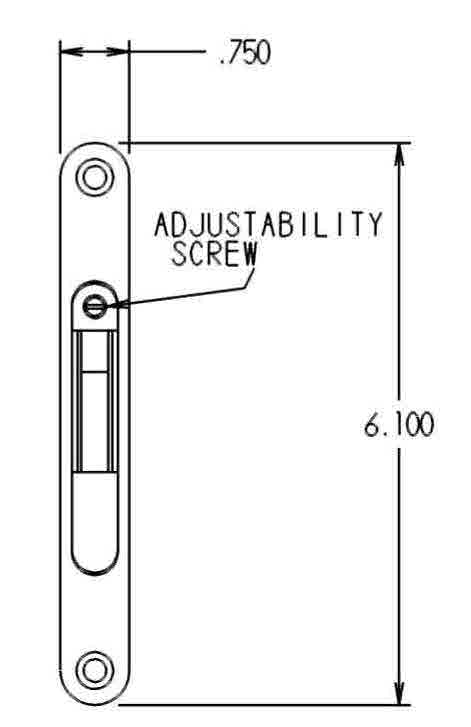

Mechanism Dimensions

Strike Dimensions

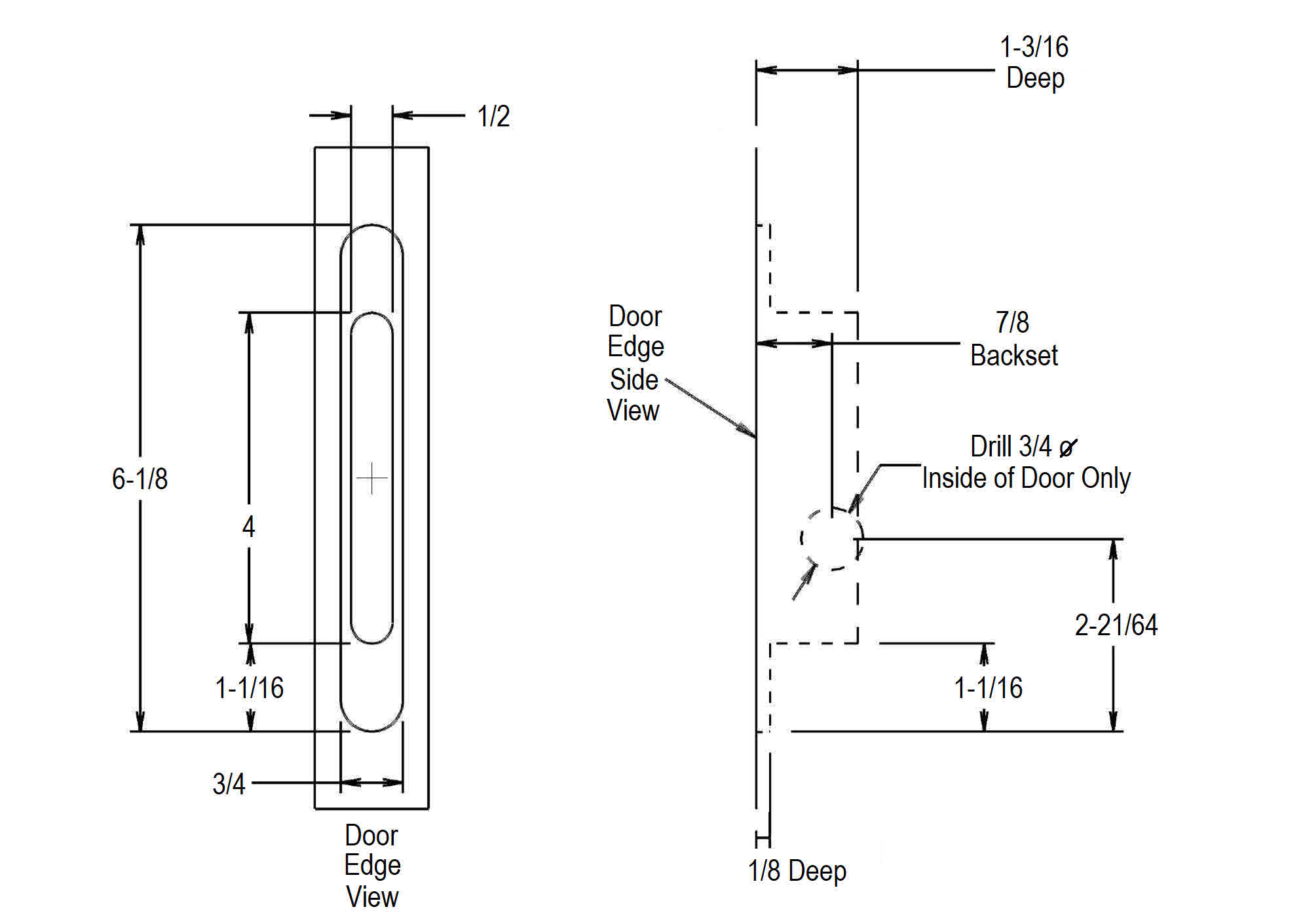

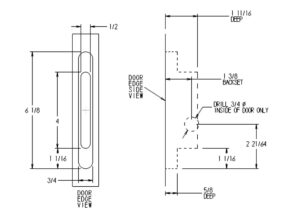

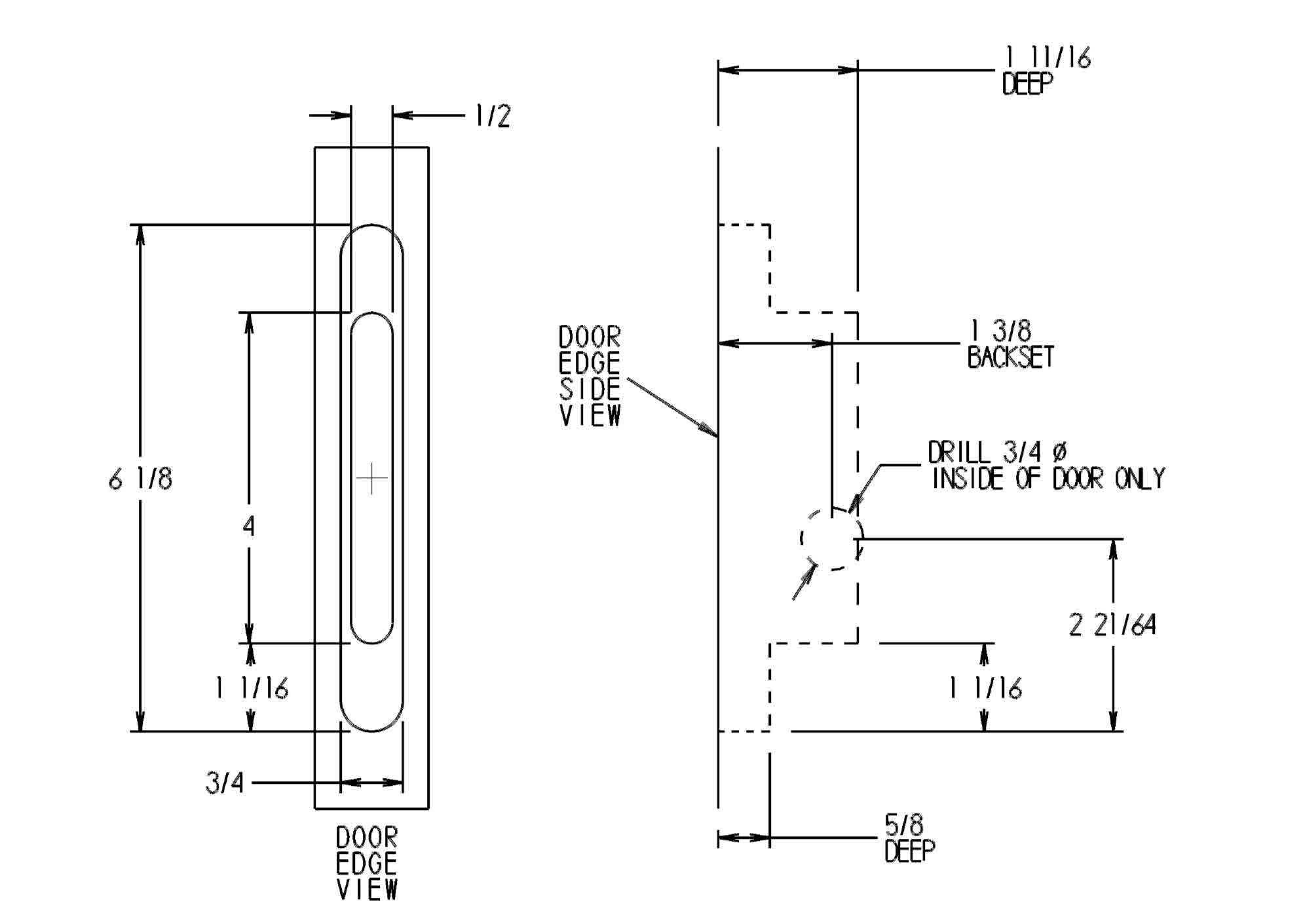

Milling Details
