The FPL Door Locks & Hardware

Product Line

Traditional Finishes: Polished Brass (US3), Antique Brass (US5), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Antique Nickel (US15A), Polished Chrome (US26), Satin Chrome (US26D), White, Black & Nougat.



Distressed & Rustic Finishes: Distressed Brass, Distressed Dark Bronze, Distressed Light Bronze, Distressed Nickel, French Country Rustic, Arts & Crafts, Rust, Shabby White & Wrought Iron.



Standard sets fit 1-3/4 inch thick stile patio doors or 1-3/8 inch interior doors. Upgrades for

2-1/4 inch thick doors and windows are also available. Simply specify this on your order.

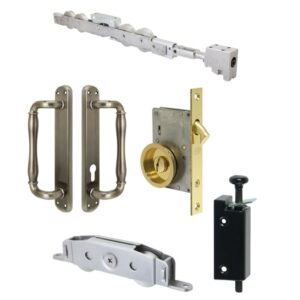

Sliding Wood Patio Door Locks & Hardware

Sliding wood patio door locksets are available in either single point or 3 point locking systems.



The #558 single point sliding mortise mechanism has a 50mm (2 inches) backset. Turning the lever or knob opens the door. The door is locked with the twist of a thumb turn profile cylinder.



The #559 single point sliding mortise mechanism also has a 50mm (2 inch) backset. However, this offers a Pull to Open feature. In the unlocked position, the mechanism will unlatch itself from the strike when the door is pulled upon. This mechanism also locks with the twist of a thumb turn profile cylinder.



The Embassy, Lanai and Balcony sets use either the #3 single point or #D70 2-point sliding mechanism which both have a backset of 1-3/8 inches. Twisting the thumb turn locks the door.



The 3 point locking mortise mechanism #6134 has a 50mm (2 inch) backset. Lifting the lever to the vertical position opens the door, whereupon the handle can be used as a door pull. When the lever is returned to the horizontal position, all 3 locking points are engaged and the unit can be locked with the twist of a thumb turn profile cylinder. This lockset is called Easy Slide! Why? High security and easy glide action.



Sliding Vinyl & Aluminum Patio Door Locks & Hardware

The Balcony, Embassy and Lanai sets are available with the #3-45-S-14AD single point locking mechanism that is standard or the #D70 2-point lock. These sets will fit vinyl, aluminum or wood stiles with the standard 3-15/16 inches mounting holes and 3/4 inch offset thumb turn.



Sliding Wood Screen Door Locks

Our #4750 sliding wood screen lock has a single locking mortise mechanism. A 1/4 turn of the teardrop thumb turn locks the wood screen door. The #4750 screen door lock will accommodate a door thickness from 1-1/8 inches to 1-3/4 inches. A #745 screen pull for the outside of the screen is included.

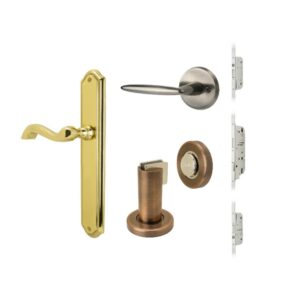

Entry & Swing Door Locks & Hardware



Front entry handlesets with thumb latches can be found in the Main Street Collection.



Entry lever handles with wide escutcheon back plates to cover 2-1/8 inch standard cross-bore holes can be found in the Enticement Collection.



Entry lever handles & knobs with keyed cylinders can be found in the Main Street Collection.



Levers or Knobs paired with Escutcheon Plates or Rosettes:



Entry / entrance / swing locksets having levers or knobs with escutcheon plates or rosettes are available in single point, 3 point and 5 point locking systems.



Single point locking mortise mechanisms are available in the following backsets: 25mm (1 inch); 40mm (1-9/16 inches); 45mm (1-3/4 inch), 50mm (2 inch) and 60mm (2-3/8 inch). Larger backsets can be special ordered. Turning the lever or knob activates the latch. Rotating the profile cylinder thumb turn engages the deadbolt and locks the door. See the Classic Collection for the various hardware styles.



The 3 point locking entrance/swing mortise mechanism (#7003) and its 2 point companion for inactive doors (#7002) are offered with a 45mm (1-3/4 inch) backset only. Lifting the lever engages allá locking points. Rotating the cylinder thumb turn locks all the points. To unlock, turn back the cylinder and push the lever down. All locking points will disengage.á Both the #7003 and #7002 mechanisms are made from Stainless Steel. See the Classic & Soaring Collections for the various hardware styles.



The 5 point locking entrance/swing mortise mechanism (#1089) also has a 2 point companion for inactive doors (#1092). Both come standard with a 50mm (2 inch) backset. A solid brass mechanism faceplate is visible down the entire edge of the door. As the cylinder is rotated, the geared ratio balanced mechanism simultaneously engages all 5 locking points with ease. You will find that the #1089 and #1092 multi-point door locks are of the highest quality. See the Classic Collection for the various hardware styles.



Passage Door Latch Sets for Bedroom, Hallway or Closet Doors



Passage sets are available with standard tubular latches that have a 2-3/8 or 2-3/4 inch backset in the Classic, Soaring, Enticement, Rosette & Main Street Collections.



For mortise passage latch sets, the Classic Collection has the available mortise latches with the following backsets: 40mm (1-9/16 inch), 45mm (1-3/4 inch), 50mm (2 inch) and 60mm (2-3/8 inch). Turning the lever or knob opens the door.



Privacy Sets for Bathroom or Bedroom Doors

Privacy sets are available with standard tubular latches that have a 2-3/8 or 2-3/4 inch backset in the Classic, Soaring, Enticement, Rosette & Main Street Collections.



For mortise privacy locksets, the Classic Collection has available mortise latches with the following backsets: 40mm (1-9/16 inch), 45mm (1-3/4 inch), 50mm (2 inch) and 60mm (2-3/8 inch). Turning the lever or knob operates the latch. The thumb turn inside with an emergency release outside operates the privacy bolt.



Pocket Door Locks & Hardware

We are proud to offer two unique pocket door locks - The #2000 pocket lock and the Manor pocket lock.á Both styles are offered in either a privacy function (with an emergency release) or passage function. The privacy has a single locking point with a heavy duty, retractable hook mortise mechanism with a 50mm (2 inch) backset. A recessed thumb turn operates the mechanism hook into the jamb. The thumb turn and the emergency release are mounted onto high quality flush pulls.á The passage pocket set consists of high quality flush pulls for the face of the door. The passage does not include a mechanism. The Manor is also available with single or double keyed cylinder that will fit a 1-3/4 inch or 2-1/4 inch thick door without projecting from the face of the door stile. A single keyed cylinder will fit a 1-3/4 inch thick door. Regardless of function, all sets include a #317 finger edge pull to pull the door out of the pocket.



Multipoint Window Hardware

The #6800 system, Stainless Steel, multi-point casement hardware is available with either a 25mm (1 inch) or 40mm (1-9/16 inches) backset. These can include shoot bolts top & bottom as well as roller cams. Because of the many configurations this hardware is capable of, components are all sold separately. Please double check your order for accuracy.

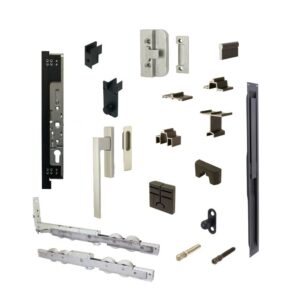

Lift & Slide Door Hardware

Stainless steel Lift & Slide door hardware system. Adjustable backset gear with 2 positions for

door or window. Connecting rod pins, 3rd roller carriage connector, adjustable strikes, extra

wide door bumper, finger edge pulls & 4 precision bearing rollers on each carriage are some of

the features of our Lift & Slide system. Also available are Lift & Slide door handles in brass

and aluminum. Also, check out our new original folding lift & slide door handle , the Monarch

with flush trim.



Side Light Hardware for Entry Doors with Side Windows

The #9232 single point side light lock has a narrow backset of 7/8 inch and is actuated with a half

profile cylinder with a thumb turn. (See also Multipoint Window Hardware)

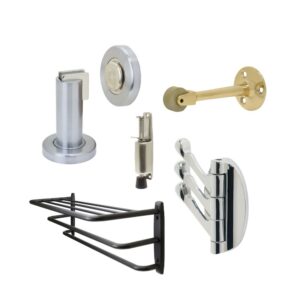

Other Hardware

Other items made by FPL include, but are not limited to: Heavy duty brass flush pulls; 6 inch flush bolts (radius or squared); surface bolts; extension flush bolts; screen pulls; finger edge pulls; dust proof strikes; deadbolts; privacy bolts; cylinder escutcheons; sliding door rollers; hinges; door stops; sliding door track; aluminum sills, commercial hardware and the list goes onů
